Connector End View (C501A) - DRIVER DOOR MODULE (DDM)
Connector:C501A
Description
DRIVER DOOR MODULE (DDM)
Color
GY
Harness
14631
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers

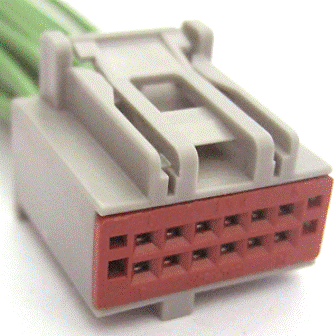

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VPM36 (BN-YE) | 22 | SENSOR - LEFT MIRROR POSITION # VERTICAL | |
| 2 | VPM35 (YE-BU) | 22 | SENSOR - LEFT MIRROR POSITION # HORIZONTAL | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | CPK19 (BU-GN) | 22 | SWITCH - LOCK DRIVER | |
| 6 | CPK23 (YE-VT) | 22 | SWITCH - HANDLE UNLOCK DRIVER | |
| 7 | CPM21 (YE-VT) | 22 | SWITCH - POWER MIRROR # RIGHT MIRROR UPWARD (IF PLUS) | |
| 8 | CPM20 (BN-WH) | 22 | SWITCH - POWER MIRROR # RIGHT MIRROR RIGHTWARD (IF PLUS) | |
| 9 | CPM17 (BU-GN) | 22 | SWITCH - POWER MIRROR # LEFT MIRROR UPWARD (IF PLUS) | |
| 10 | CPM16 (BN-BU) | 22 | SWITCH - POWER MIRROR # LEFT MIRROR RIGHTWARD (IF PLUS) | |
| 11 | CPM23 (GY) | 22 | SWITCH - POWER MIRROR # COMMON ALL MOTORS (LEFT AND RIGHT) | |
| 12 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-949 |
Service Part Number: 3U2Z-14S411-BMAB Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety |
