Connector End View (C402A) - REAR WINDOW DEFROST GRID
Connector:C402A
Description
REAR WINDOW DEFROST GRID
Color
LT GY
Harness
14A005
Base Part #
18C618
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CRD06 (BN-YE) | 12 | RELAY - HEATER REAR WINDOW | |
| 2 | * | * | Not Used |
| Available Pigtail Kits | |

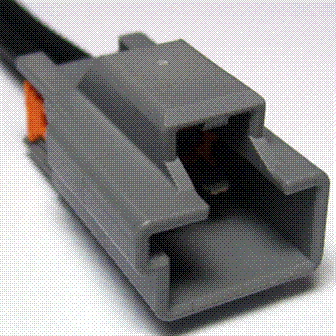

| Pigtail Kit Part Number WPT-1149 |
Service Part Number: 6U2Z-14S411-PB Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses Element - Heated Windshield Motor - Convertible Top Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear Motor - Seat Lumbar Switch - Heater A/C Blower (Rear) Terminal - Rear Window Defroster Grid |
