Connector End View (C397) - SPEAKER, LEFT REAR
Connector:C397
Description
SPEAKER, LEFT REAR
Color
BN
Harness
14A005
Base Part #
18808
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME09 (WH-GN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) + | |
| 2 | RME09 (BN-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) - |
| Available Pigtail Kits | |

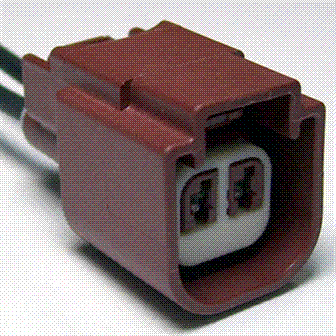

| Pigtail Kit Part Number WPT-1231 |
Service Part Number: 3U2Z-14S411-DVAB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Heater - Fuel Sensor - Oil Temperature |
