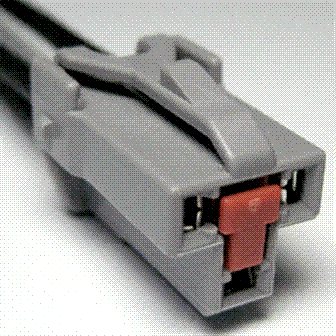

Connector End View (C380) - POWER POINT, CONSOLE FRONT

Connector:C380

Description

POWER POINT, CONSOLE FRONT

Color

GY

Harness

14B079

Base Part #

19N236

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB20 (GN-RD)	16	FUSE - 20 OR CIRCUIT BREAKER
2	*	*	Not Used
3	GD375 (BK-BU)	16	GROUND - TUNNEL # 2ND POINT (BC3T)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1160  Courtesy of FORD MOTOR COMPANY	Service Part Number: 3U2Z-14S411-SJB  Gauge: 12  Pin material: Tin  Cavities: 3  Vehicle Uses Cigar Lighter Lamp - Ash Tray Power Point
