Connector End View (C377) - EVAPORATIVE EMISSION (EVAP) CANISTER VENT VALVE

Connector:C377

Description

EVAPORATIVE EMISSION (EVAP) CANISTER VENT VALVE

Color

Harness

14407

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	20	FUSE - 2 OR CIRCUIT BREAKER (VPWR)	GTDI
1	SBB86 (BN-RD)	20	FUSE - 86 OR CIRCUIT BREAKER
2	CE114 (GN-BU)	20	EVAPORATIVE EMISSION (EVAP) CANISTER VENT VALVE (CANV)

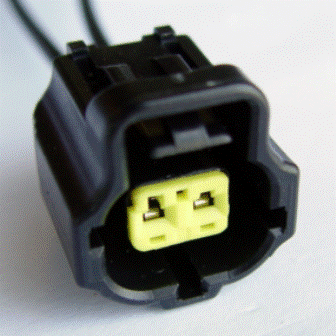

Available Pigtail Kits

Pigtail Kit Part Number

WPT-322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JZA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Resistor - Daytime Running Lamp (DRL)

Sensor - Air Charge Temperature

Sensor - Brake Pressure

Solenoid - Canister Vent

Switch - Brake Pressure
