Connector End View (C369) - SEAT CONTROL SWITCH, DRIVER SIDE FRONT
Connector:C369
Description
SEAT CONTROL SWITCH, DRIVER SIDE FRONT
Color
LT GY
Harness
14D231
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS27 (BU-BN) | 18 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP | |
| 2 | CPS25 (WH-VT) | 18 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP | |
| 3 | GD904 (BK-BU) | 14 | GROUND - DRIVER SEAT # SEAT SWITCH | |
| 4 | CPS23 (GN-VT) | 18 | SWITCH - SEAT ADJUST. DRIVER FORWARD | |
| 5 | CBX04 (WH-RD) | 18 | POWER - SEAT # MEMORY MODULE HIGH CURRENT | |
| 6 | CPS24 (GY) | 18 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN | |
| 7 | CPS19 (GY-VT) | 20 | SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE | |
| 8 | CPS30 (VT-BN) | 18 | SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD | |
| 9 | CPS28 (GN) | 18 | SWITCH - SEAT ADJUST. DRIVER REARWARD | |
| 10 | CPS18 (BN-GN) | 20 | SWITCH - DRIVER LUMBAR PUMP | |
| 11 | CPS29 (WH-BN) | 18 | SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD | |
| 12 | CPS26 (YE-BU) | 18 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN |
| Available Pigtail Kits | |

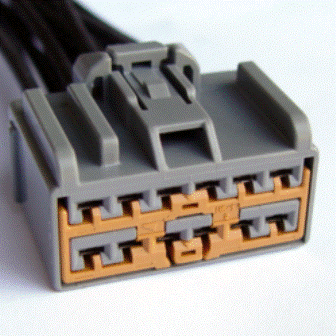

| Pigtail Kit Part Number WPT-396 |
Service Part Number: 3U2Z-14S411-BKA Gauge: 12 Pin material: Tin Cavities: 12 Vehicle Uses Module - Liftgate Switch - Headlamp Switch - Seat (driver) Switch - Seat (passenger) |
