Connector End View (C367) - SIDE AIR BAG MODULE, DRIVER

Connector:C367

Description

SIDE AIR BAG MODULE, DRIVER

Color

Harness

14D687

Base Part #

611D10

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR105 (GN-BU)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE +
2	RR105 (GY-YE)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE -

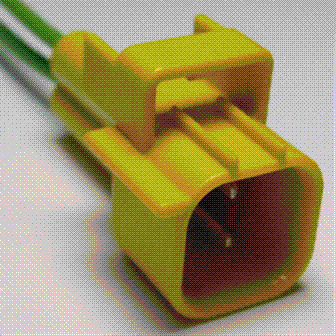

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1244

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BMA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Pretensioner - Seat Belt (Passenger)
