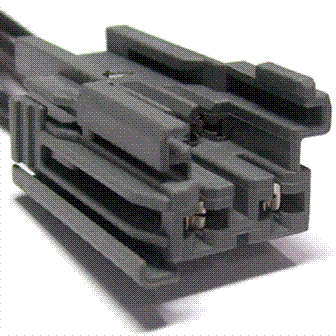

Connector End View (C362) - DRIVER SEAT HORIZONTAL MOTOR
Connector:C362
Description
DRIVER SEAT HORIZONTAL MOTOR
Color
GY
Harness
14D231
Base Part #
61711
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS01 (GN-BU) | 16 | CTRL MOD. - DRIVER SEAT SLIDE FORWARD | memory |
| 1 | CPS23 (GN-VT) | 16 | SWITCH - SEAT ADJUST. DRIVER FORWARD | w/o memory |
| 2 | CPS06 (GN-WH) | 16 | CTRL MOD. - DRIVER SEAT SLIDE REARWARD | memory |
| 2 | CPS28 (GN) | 16 | SWITCH - SEAT ADJUST. DRIVER REARWARD | w/o memory |
| 3 | RPS13 (GN-OG) | 18 | CTRL MOD. - DRIVER SEAT SENSORS CUSHION - | memory |
| 4 | VPS09 (BN-BU) | 18 | SENSOR - DRIVER SEAT SLIDE FORWARD/REARWARD | memory |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1072 |
Service Part Number: AU2Z-14S411-RA Gauge: 14 18 Pin material: Tin Cavities: 4 Vehicle Uses Motor - Power Seat Track Motor - Seat Height (Front) Motor - Steering Column Adjust |
