Connector End View (C341A) - DRIVER SEAT MODULE (DSM)
Connector:C341A
Description
DRIVER SEAT MODULE (DSM)
Color
GY
Harness
14D231
Base Part #
14C708
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBX05 (VT-RD) | 14 | POWER - SEAT # POWER SEAT SWITCH | |
| 2 | GD906 (BK-GY) | 14 | GROUND - SEAT # MEMORY MODULE HIGH CURRENT |

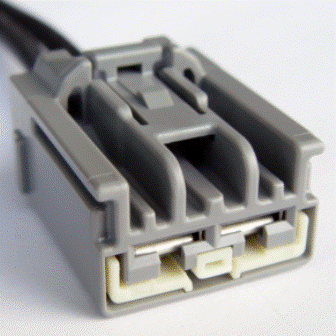

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-236 |
Service Part Number: 3U2Z-14S411-PA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) |
