Connector End View (C339) - Inline
InlineC339
Description
Inline
Color
YE
Base Part #
Service Pigtail
See Below
MALE
Harness 14D230
FEMALE
Harness 14C687
| Pin | Circuit | Gauge | Qualifier |
| 1 | RR106 (YE-OG) | 20 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | RR106 (YE-OG) | 20 |
| Available Pigtail Kits | |

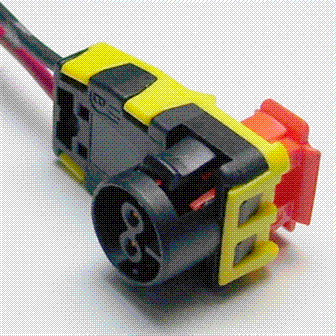

| Pigtail Kit Part Number WPT-1225 |
Service Part Number: BU2Z-14S411-BHA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses: Airbag - Side Curtain Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger) |
