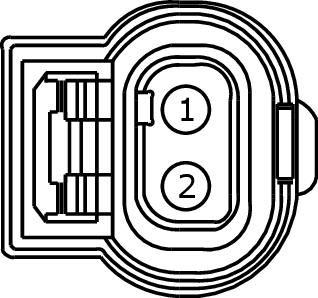

Connector End View (C1369) - VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID
Connector:C1369
Description
VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR) | |
| 2 | CE422 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 12 (VCT12) |

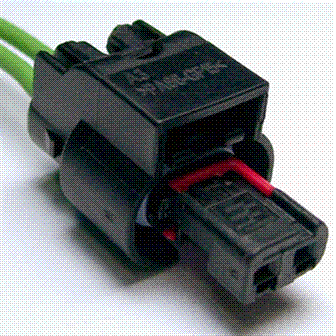

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1251 |
Service Part Number: CU2Z-14S411-DA Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses Solenoid - Engine Variable Timing |
