Connector End View (C1367) - CAMSHAFT POSITION 12 (CMP12) SENSOR

Connector:C1367

Description

CAMSHAFT POSITION 12 (CMP12) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE429 (GY-OG)	20	CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN)
2	VE706 (BN-BU)	20	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP12)

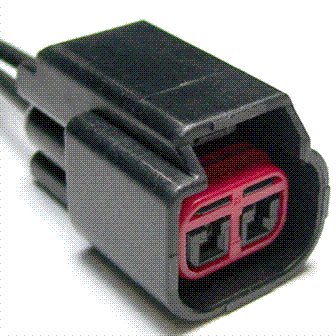

Available Pigtail Kits

Pigtail Kit Part Number

WPT-986

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-SLB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Coil - Ignition

Lamp - License

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position
