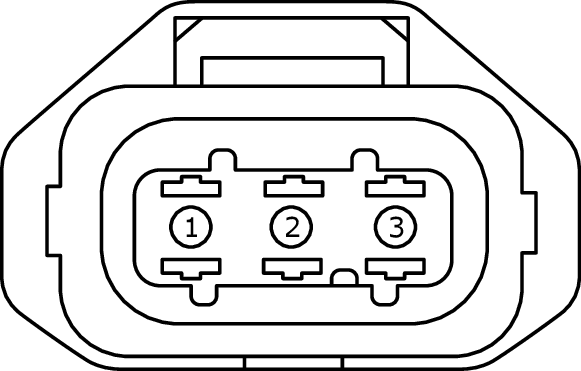

Connector End View (C1360) - FUEL RAIL PRESSURE (FRP) SENSOR
Connector:C1360
Description
FUEL RAIL PRESSURE (FRP) SENSOR
Color
Harness
12B637
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE454 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | 2.0L GTDI |
| 1 | * (BU) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | 3.5L GTDI |
| 2 | * (BK) | 20 | SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) | 3.5L GTDI |
| 2 | LE238 (GY) | 20 | #N/A | 2.0L GTDI |
| 3 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) | 2.0L GTDI |
| 3 | * (GY) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREV) (VREF1) | 3.5L GTDI |
