Connector End View (C1246) - TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID

Connector:C1246

Description

TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID

Color

Harness

12C508

Base Part #

9K378

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE824 (YE-GN)	20	CTRL MOD. - POWERTRAIN - TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID (TCWRVS)
2	CBK03 (GY)	20	FUSE - 3 OR CIRCUIT BREAKER (VPWR)

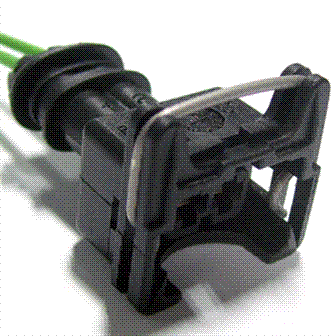

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1107

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BEA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Actuator - Turbocharger Waste Gate

Solenoid - EGR Cooler Bypass
