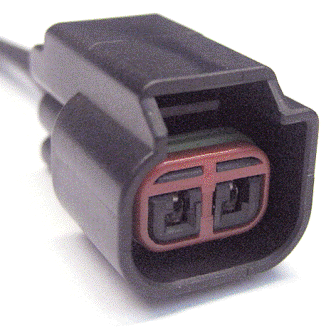

Connector End View (C1196) - EVAPORATIVE EMISSION (EVAP) PURGE VALVE

Connector:C1196

Description

EVAPORATIVE EMISSION (EVAP) PURGE VALVE

Color

Harness

12C508

Base Part #

9G641

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR)	2.0L GTDI
1	CE113 (WH-BN)	20	CTRL MOD. - EVAPORATIVE EMISSION (EVAP) PURGE VALVE (EVAPCP)	3.5L GTDI
1	CE113 (WH-BN)	18	CTRL MOD. - EVAPORATIVE EMISSION (EVAP) PURGE VALVE (EVAPCP)	3.5L/3.7L TIVCT
2	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR)	3.5L/3.7L TIVCT
2	CE113 (WH-BN)	20	CTRL MOD. - EVAPORATIVE EMISSION (EVAP) PURGE VALVE (EVAPCP)	2.0L GTDI

Available Pigtail Kits

Pigtail Kit Part Number

WPT-905

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-EA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Relay - Daytime Running Lamp (DRL)

Switch - Heater / A/C Blower (Front)
