Connector End View (C1185) - FUEL INJECTOR 5
Connector:C1185
Description
FUEL INJECTOR 5
Color
GY
Harness
12B637
Base Part #
9F593
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (BN) | 14 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ5) | |
| 2 | * (BK) | 14 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ5RTN) |

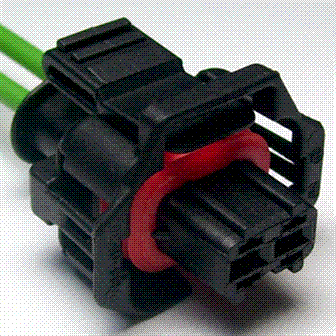

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1302 |
Service Part Number: CU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Fuel Injector Pump - Fuel Injection Solenoid - Fuel Volume Regulator Control |
