Connector End View (C1110) - EXTERNALLY CONTROLLED VARIABLE DISPLACEMENT COMPRESSOR (EVDC)
Connector:C1110
Description
EXTERNALLY CONTROLLED VARIABLE DISPLACEMENT COMPRESSOR (EVDC)
Color
BK
Harness
14B060
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VE462 (WH) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE | |
| 2 | CBB70 (YE) | 18 | FUSE - 70 OR CIRCUIT BREAKER |

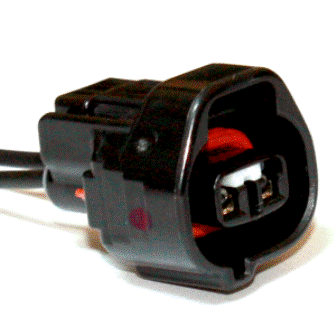

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-869 |
Service Part Number: 6U2Z-14S411-DA Gauge: 18 Pin material: Tin Cavities: 2 Vehicle Uses Lamp - License |
