Connector End View (C1077) - ENGINE COOLING FAN MOTOR 2
Connector:C1077
Description
ENGINE COOLING FAN MOTOR 2
Color
DK GY
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBB31 (BU-OG) | 6.0 | FUSE - 31 OR CIRCUIT BREAKER (FANPWR) | |
| 2 | GD123 (BK-GY) | 6.0 | GROUND - FENDER FRONT RIGHT |
| Available Pigtail Kits | |

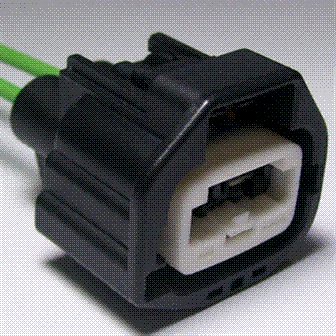

| Pigtail Kit Part Number WPT-1417 |
Service Part Number: 3U2Z-14S411-EUAB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses Motor - Engine Cooling Fan Pump - Fuel (External) Resistor - Fan Dropping Trailer Tow - Vehicle Side |
