Connector End View (C1019) - INLINE
InlineC1019
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14290
FEMALE
Harness 14290
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Qualifier |
| 1 | GD123 (BK-GY) | 20 | |
| 2 | CBP30 (YE-BU) | 20 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | GD123 (BK-GY) | 20 | |
| 2 | CBP30 (YE-BU) | 20 |
| Available Pigtail Kits | |

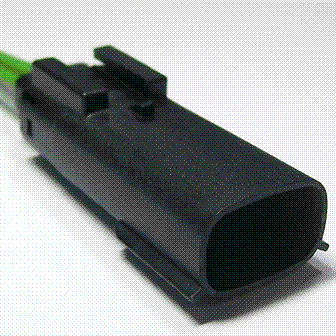

| Pigtail Kit Part Number WPT-1180 |
Service Part Number: AU2Z-14S411-ASA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses: Speaker - Tweeter - RH - Rear |
