Fuel System Pressure Release

Pressure release

• 1.

  Remove the rear seat cushion. Refer to: Rear Seat Cushion .

NOTE: On vehicles equipped with Gasoline Turbocharged Direct Injection (GTDI), running the engine with the FPDM disconnected will remove most of the pressure from both the low and high pressure sides of the system.
• 2.

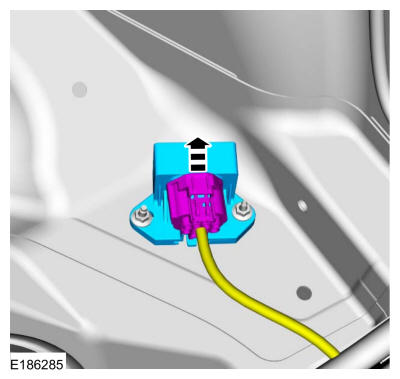

  Disconnect the FPDM electrical connector.

Courtesy of FORD MOTOR COMPANY

• 3.

  Start the engine and allow it to idle until the engine stalls.

• 4.

  Turn the ignition switch to the off position.

• 5.

  When the fuel system service is complete, reconnect the FPDM electrical connector.

Courtesy of FORD MOTOR COMPANY

• 6.

  Install the rear seat cushion. Refer to: Rear Seat Cushion .

• 7.

  Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.

• 8.

  When service on the fuel system is complete, start the engine and check for leaks.
