Parking Aid

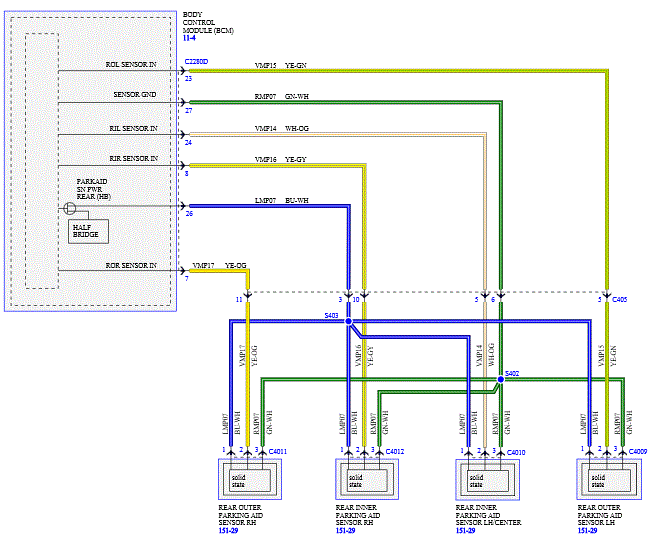

Fig 1: Parking Aid Wiring Diagram (1 Of 3)
GFDW3306Courtesy of FORD MOTOR COMPANY
Fig 2: Parking Aid Wiring Diagram (2 Of 3)
GFDW3307Courtesy of FORD MOTOR COMPANY
Fig 3: Parking Aid Wiring Diagram (3 Of 3)
GFDW3308Courtesy of FORD MOTOR COMPANY
