Instrument Cluster

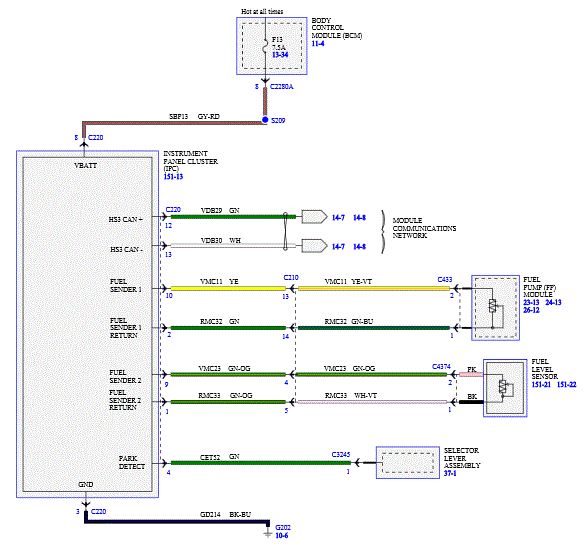

Fig 1: Instrument Cluster Wiring Diagram (1 Of 4)
GFDW3329Courtesy of FORD MOTOR COMPANY

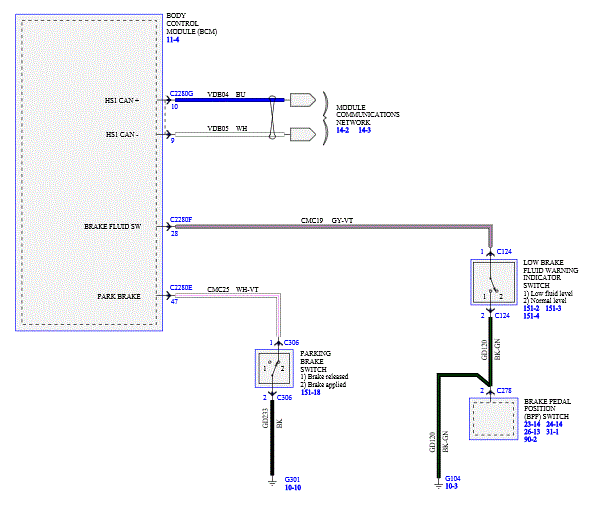

Fig 2: Instrument Cluster Wiring Diagram (2 Of 4)
GFDW3330Courtesy of FORD MOTOR COMPANY

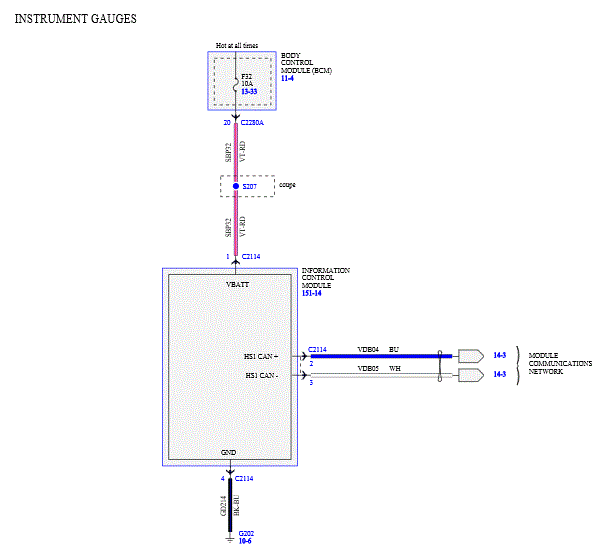

Fig 3: Instrument Cluster Wiring Diagram (3 Of 4)
GFDW3331Courtesy of FORD MOTOR COMPANY

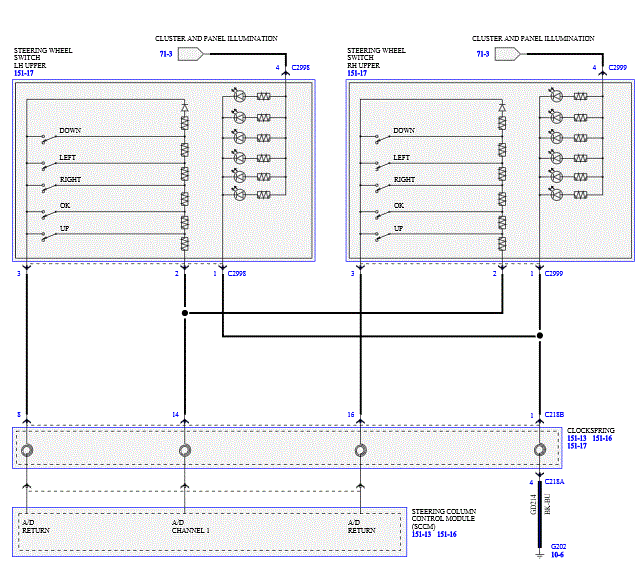

Fig 4: Instrument Cluster Wiring Diagram (4 Of 4)
GFDW3332Courtesy of FORD MOTOR COMPANY
