Brake Master Cylinder: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

Vehicles with manual transmission

1.

Remove the brake fluid reservoir cap.

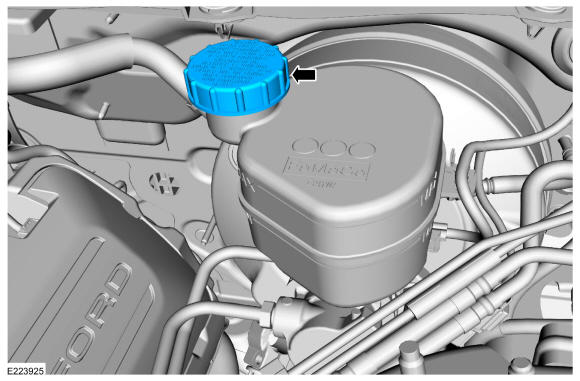

GFD5651

Courtesy of FORD MOTOR COMPANY

2.

Using a suitable suction device, syphon the brake fluid from the brake fluid reservoir.

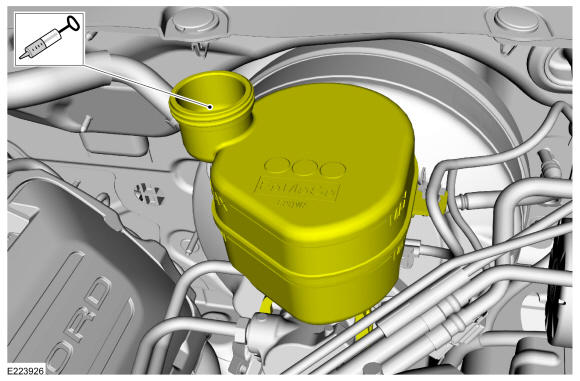

GFD5652

Courtesy of FORD MOTOR COMPANY

3.

Disconnect the clutch master cylinder tube.

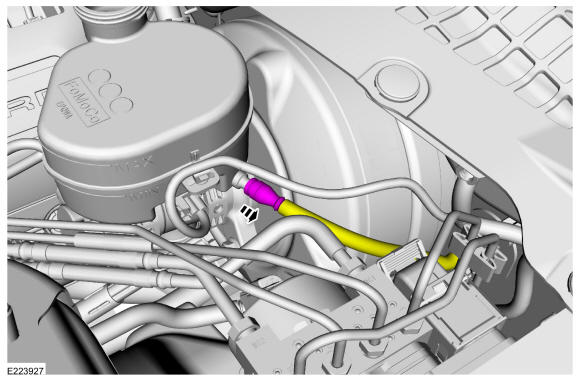

GFD5653

Courtesy of FORD MOTOR COMPANY

4.

Detach the clutch master cylinder tube bracket from the master cylinder studs.

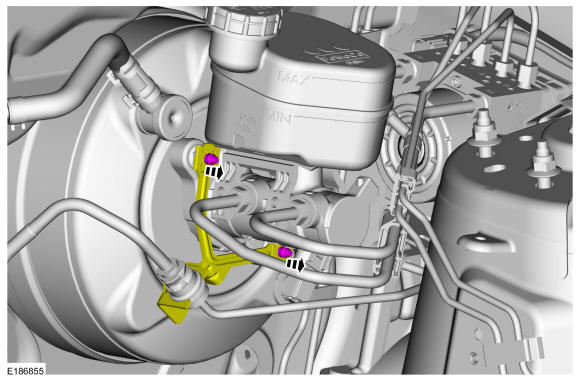

GFD5654

Courtesy of FORD MOTOR COMPANY

All vehicles

5.
- 1.

  Disconnect the brake fluid level sensor electrical connector.
- 2.

  Detach the wiring harness retainer from the brake fluid reservoir.

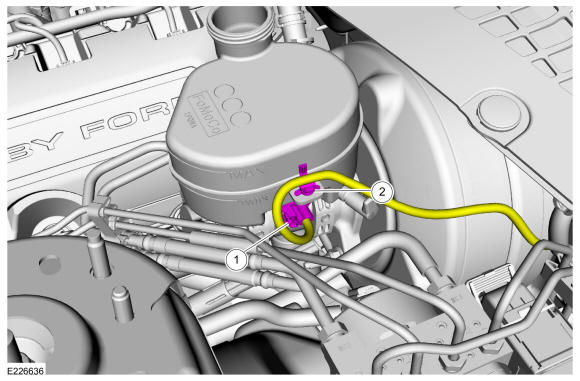

GFD5655

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that all openings are sealed.

6.
Disconnect the 2 brake tube fittings.
Torque

: 20 lb.ft (27.5 Nm)

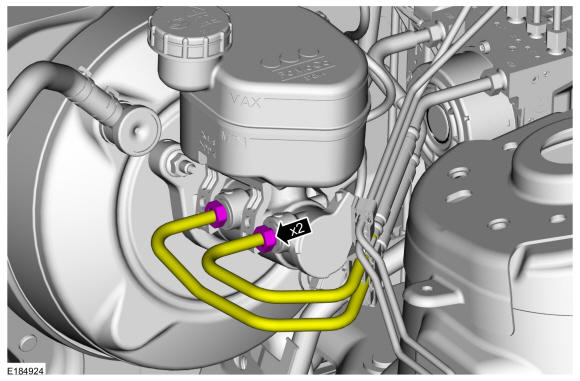

GFD5656

Courtesy of FORD MOTOR COMPANY

7.

Remove the 2 nuts and the brake master cylinder. Discard the nuts.
Torque

: 17 lb.ft (23 Nm)

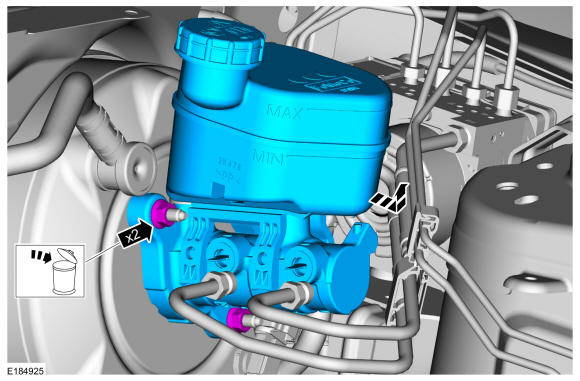

GFD5657
