Brake System Pressure Bleeding

Special Tool(s) / General Equipment

Brake/Clutch System Pressure Bleeder/Filler

Fluid Container

Bleeding

All vehicles

NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.
• 1.

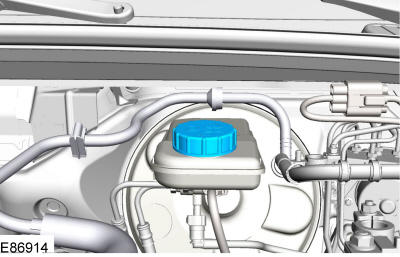

  Remove the brake fluid reservoir cap.

Courtesy of FORD MOTOR COMPANY

• 2.

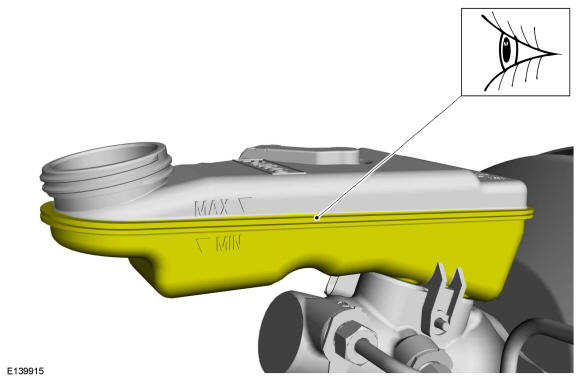

  Make sure the fluid reservoir is filled with clean specified brake fluid. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

• 3.


  NOTE: Master cylinder pressure bleeder adapter tools are available from various manufacturers of pressure bleeding equipment. Follow the instructions of the manufacturer when installing the adapter.
  • 1.
    Install the bleeder adapter to the brake master cylinder reservoir and attach the bleeder tank hose to the fitting on the adapter. Use the General Equipment: Brake/Clutch System Pressure Bleeder/Filler
  NOTE: Make sure the bleeder tank contains enough clean, specified brake fluid to complete the bleeding operation.
  • 2.
    Open the valve on the bleeder tank and apply 207-345 kPa (30-50 psi) to the brake system.

• 4.

  With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

• 5.

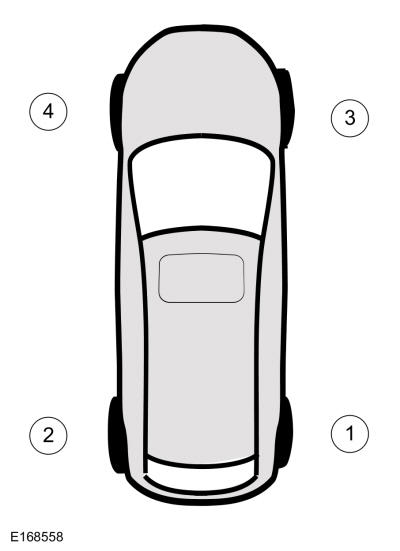

  Bleeding steps must be followed in the order indicated in the graphic. For vehicles equipped with 4 or 6 piston brake calipers, bleed the inner bleeder screw first, followed by the outer bleeder screw.

Courtesy of FORD MOTOR COMPANY

• 6.

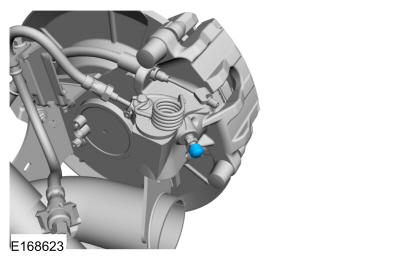

  If equipped, remove the bleeder screw cap.

Courtesy of FORD MOTOR COMPANY

• 7.

  Partially fill a clean brake fluid container with clean specified brake fluid. Refer to: Specifications . Use the General Equipment: Fluid Container

Courtesy of FORD MOTOR COMPANY

• 8.

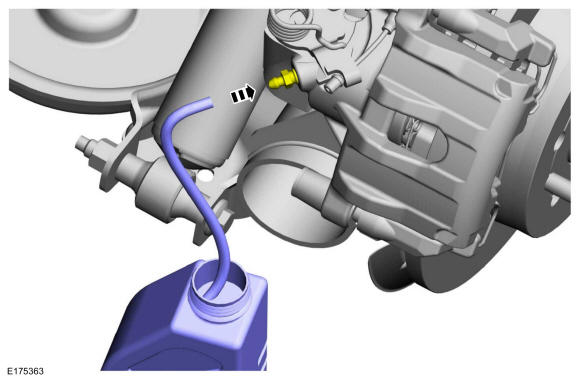

  Submerge a hose into the brake fluid in the container and connect the hose to bleeder screw.

Courtesy of FORD MOTOR COMPANY

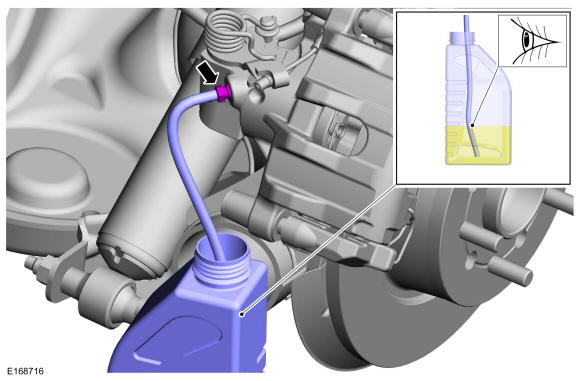

• 9.



  • 1.

    Loosen the bleeder screw. Loosen: 180°

  • 2.

    Leave open until clear, bubble-free brake fluid flows, then tighten the bleeder screw.

Courtesy of FORD MOTOR COMPANY

Vehicles with rear integral parking brake calipers

NOTE: Due to the complexity of the fluid path within the rear integral parking brake calipers, it is necessary to apply and release the parking brake during the bleed procedure.

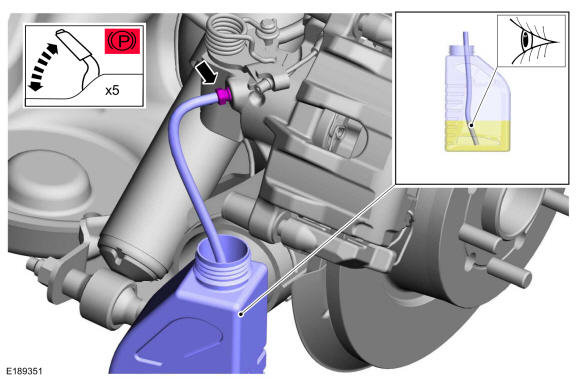

• 10.


  • 1.

    Apply and release the parking brake 5 times.

  • 2.

    Loosen the bleeder screw. Loosen: 180°

  • 3.

    Leave open until clear, bubble-free fluid flows and then tighten the bleeder screw.

  • 4.

    Repeat as necessary.

Courtesy of FORD MOTOR COMPANY

All vehicles

• 11.



  • 1.

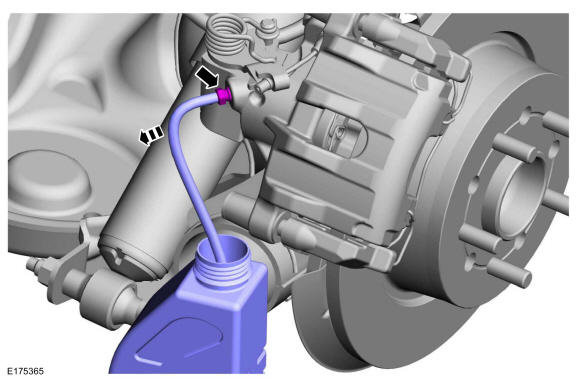

    Tighten the bleeder screw to specification and remove the hose and brake fluid container. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

• 12.

  If equipped, install the bleeder screw cap.

Courtesy of FORD MOTOR COMPANY

NOTE: For vehicles equipped with 4 or 6 piston brake calipers, bleed the inner bleeder screw first, followed by the outer bleeder screw.
• 13.
  Repeat steps 5-12 at the remaining wheel ends.

• 14.

  Lower the vehicle.

• 15.

  Close the bleeder tank valve and release the pressure. Remove the General Equipment: Brake/Clutch System Pressure Bleeder/Filler

• 16.

  Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

• 17.

  Install the brake fluid reservoir cap.

Courtesy of FORD MOTOR COMPANY

Vehicles with new hydraulic control unit (HCU) installed

• 18.

  Using the diagnostic scan tool, follow the ABS Service Bleed instructions.

• 19.

  Repeat brake system pressure bleeding steps.
