Removal And Installation: Turbocharger: Removal

• 1.

  With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

• 2.

  Remove the A/C Compressor Belt. Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT - 2.3L EcoBoost (231kW/314PS).

• 3.

  Disconnect the TC bypass valve electrical connector and then detach the wire harness retainers.

Courtesy of FORD MOTOR COMPANY

• 4.

  Loosen the TC outlet pipe clamps and then remove the TC outlet pipe.

Courtesy of FORD MOTOR COMPANY

• 5.

  Disconnect the A/C compressor electrical connectors and the wire harness retainers.

Courtesy of FORD MOTOR COMPANY

• 6.

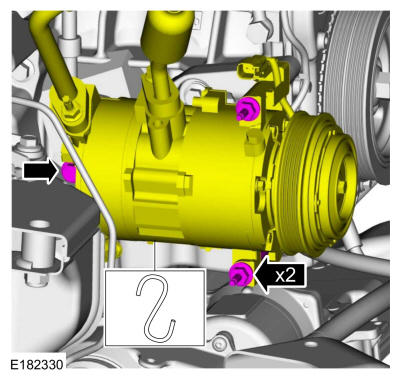

  Remove the bolts, then position and support the A/C compressor out of the way.

Courtesy of FORD MOTOR COMPANY

• 7.

  Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.

Courtesy of FORD MOTOR COMPANY

• 8.

  Drain the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

NOTE: Clean all exhaust connections before reassembly.
• 9.
  Remove the catalytic converter flange nuts and the catalytic converter bracket bolts.

Courtesy of FORD MOTOR COMPANY

• 10.

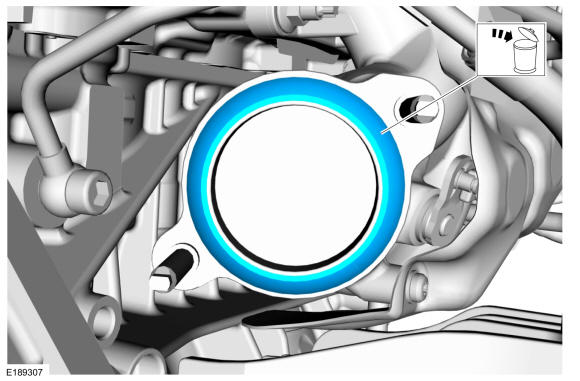

  Remove and discard the TC flange gasket.

Courtesy of FORD MOTOR COMPANY

• 11.

  Disconnect the TC control hoses.

Courtesy of FORD MOTOR COMPANY

• 12.

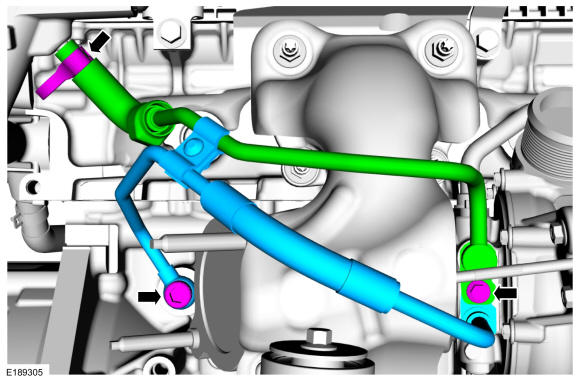

  Remove the TC coolant tube bolts, disconnect the TC coolant tube hose and then remove the TC coolant tubes.

  Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

• 13.

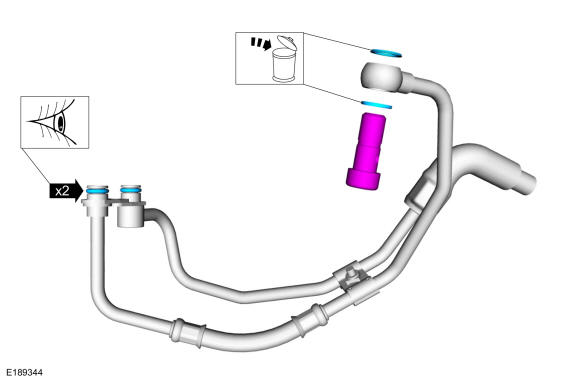

  Remove and discard the TC coolant tube sealing washers. Inspect and replace the TC coolant tube O-ring seals as needed.

Courtesy of FORD MOTOR COMPANY

• 14.

  Remove the TC oil feed tube retaining bolts and then remove the TC oil feed tube.

Courtesy of FORD MOTOR COMPANY

• 15.

  Remove and discard the TC oil feed tube O-ring seal and the TC oil feed tube bolt sealing washers.

Courtesy of FORD MOTOR COMPANY

• 16.

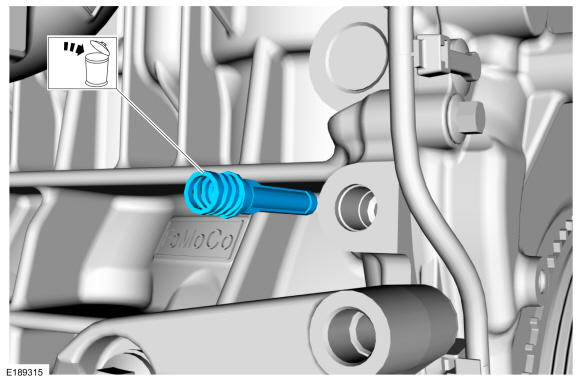

  Remove and discard the TC oil filter.

Courtesy of FORD MOTOR COMPANY

• 17.

  Remove the TC oil drain tube bolts and then remove the TC oil drain tube.

Courtesy of FORD MOTOR COMPANY

• 18.

  Remove and discard the TC oil drain tube O-ring seal and the TC oil drain tube gasket.

Courtesy of FORD MOTOR COMPANY

• 19.

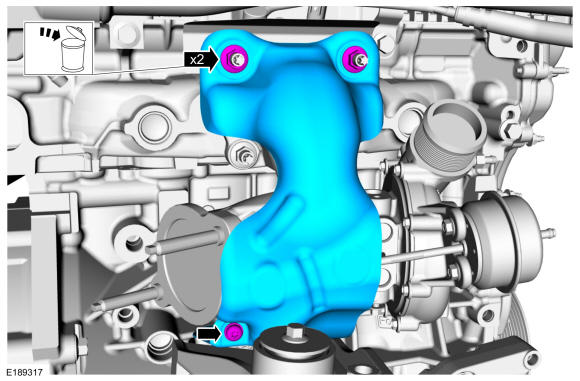

  Remove and discard the upper TC mounting nuts, remove the lower TC heat shield retaining bolt and then remove the TC heat shield.

Courtesy of FORD MOTOR COMPANY

• 20.

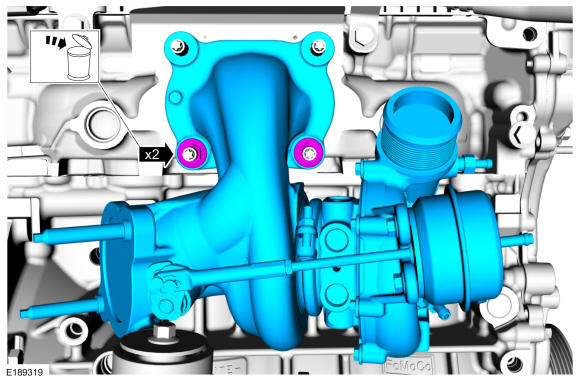

  Remove and discard the lower TC mounting nuts, then remove the TC.

Courtesy of FORD MOTOR COMPANY

• 21.

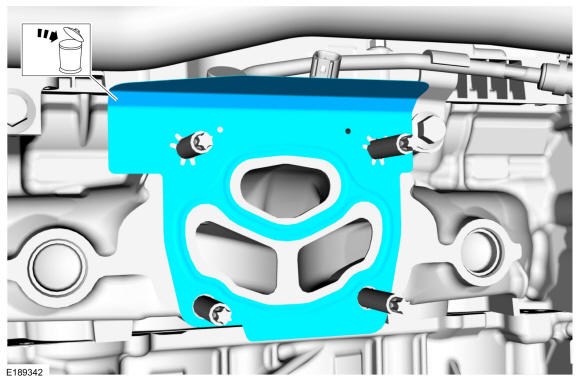

  Remove and discard the TC gasket.

Courtesy of FORD MOTOR COMPANY

• 22.

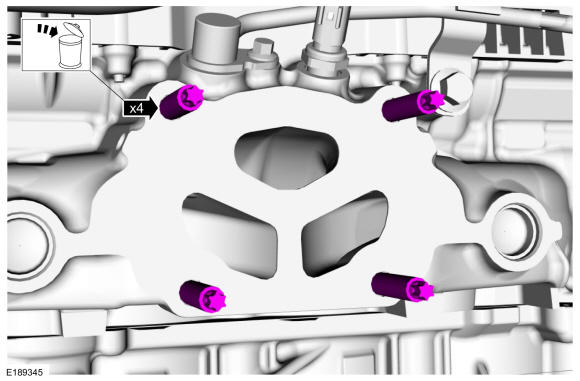

  If needed, remove and discard the TC mounting studs.

Courtesy of FORD MOTOR COMPANY

• 23.

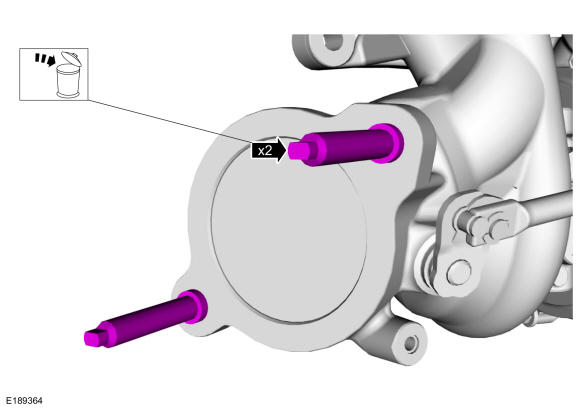

  If needed, remove and discard the TC exhaust studs.

Courtesy of FORD MOTOR COMPANY
