Removal And Installation: Turbocharger: Installation
NOTE:

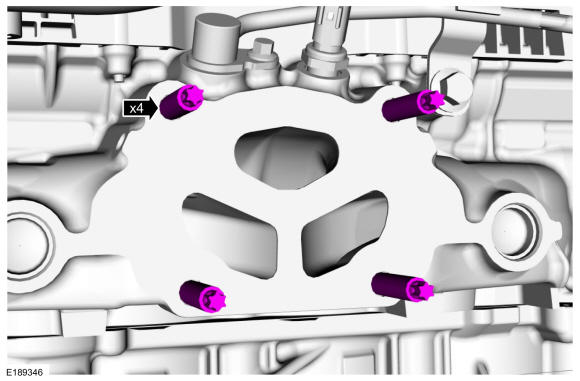

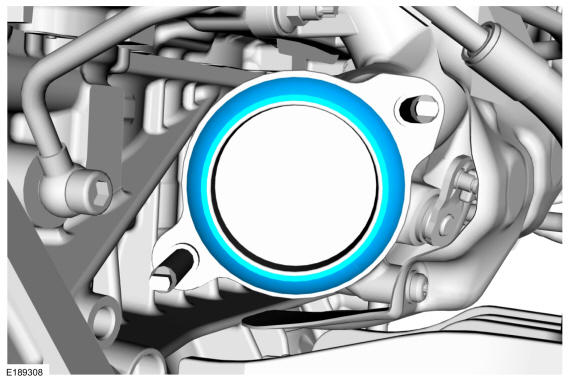

Make sure that the mating faces are clean and free of foreign material.
- 5.

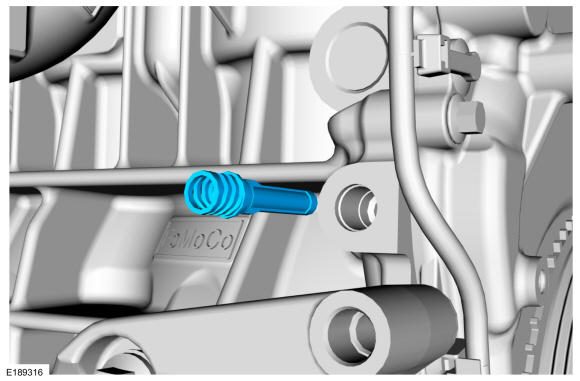

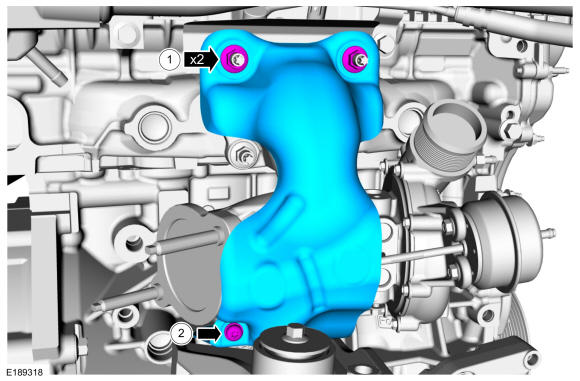

- 1.

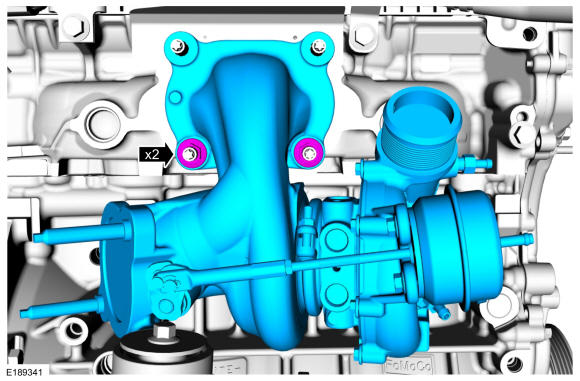

Tighten the new upper TC mounting nuts.Torque
: 37 lb.ft (50 Nm)
- 2.
Tighten the lower TC heat shield retaining bolt.Torque
: 89 lb.in (10 Nm)
- 1.
NOTE:

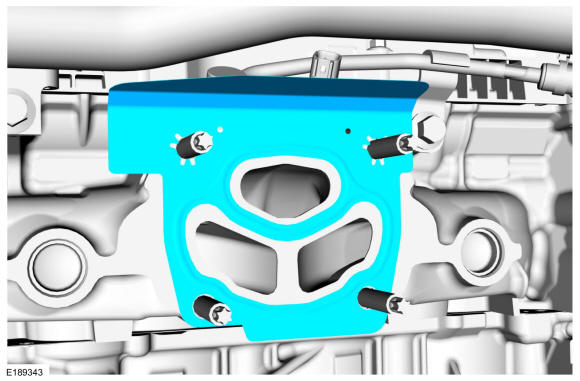

Install the TC heat shield, the new upper TC mounting nuts and the lower TC heat shield retaining bolt finger tight at this stage.
- 6.
Install a new TC oil drain tube O-ring seal and a new TC oil drain tube gasket. Lubricate the new TC oil drain tube O-ring seal with clean engine oil.

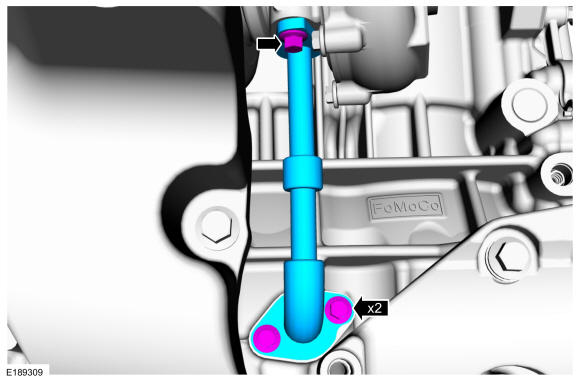

- 7.
Install the TC oil drain tube, then install and tighten the TC oil drain tube bolts.Torque
: 89 lb.in (10 Nm)
NOTE:
The oil drain tube must be fully seated prior to fastener rundown.
- 8.

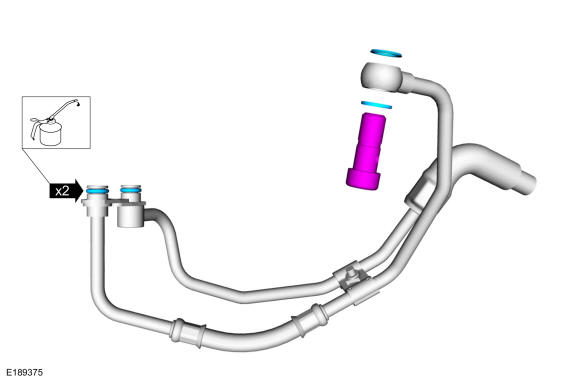

Install the new TC oil filter.
NOTE:
Do not reuse the TC oil filter, a new TC oil filter must be installed.
- 9.

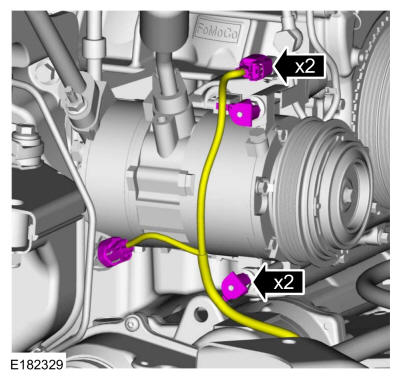

Install a new TC oil feed tube O-ring seal and the new TC oil feed tube sealing washers. Lubricate the O-ring seal with clean engine oil.
- 10.
- 1.

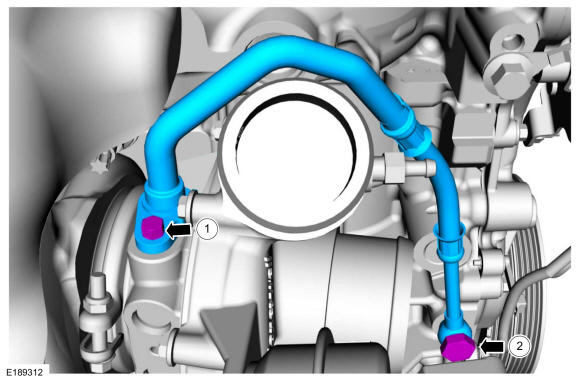

Tighten the TC oil feed tube retaining bolt.Torque
: 89 lb.in (10 Nm)
- 2.
Tighten the TC oil feed tube retaining bolt.Torque
: 18 lb.ft (25 Nm)
- 1.
NOTE:
The oil feed tube must be fully seated prior to fastener rundown.
NOTE:
Install the TC oil feed tube and the TC oil feed tube retaining bolts finger tight at this stage.
- 11.
Install the new TC coolant tube sealing washers. Lubricate the TC coolant tube O-ring seals with clean engine coolant.
- 12.

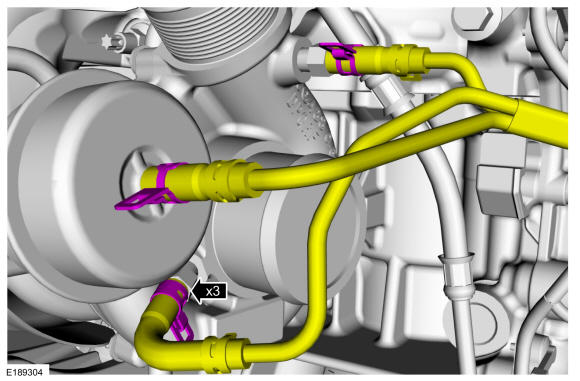

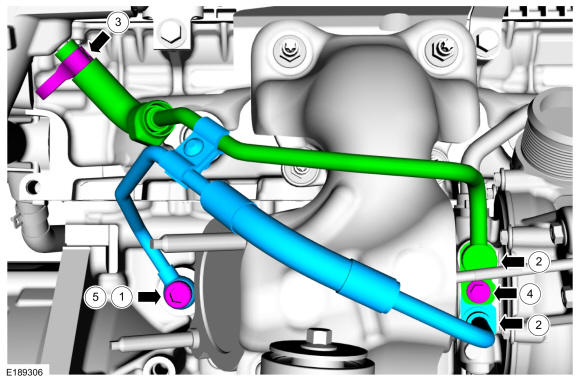

- 1.
Install the TC cooling tube bolts finger tight at this stage.
NOTE: Lubricate the TC cooling tube O-ring seals with clean engine coolant.- 2.
Fit the O-ring end of the TC coolant tubes to the TC. The lower coolant inlet tube goes into the TC first.Material
: Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D)
- 3.
Install the TC coolant tube hose end to the water outlet adapter port.Use the General Equipment: Hose Clamp Remover/Installer
- 4.
Tighten TC the coolant tube bolt.Torque
: 89 lb.in (10 Nm)
- 5.
Tighten TC the coolant tube bolt.Torque
: 27 lb.ft (37 Nm)
- 1.

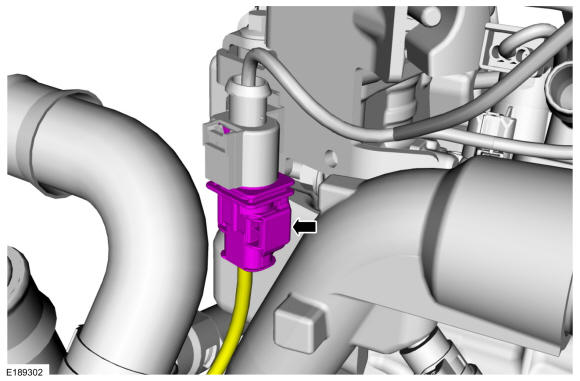

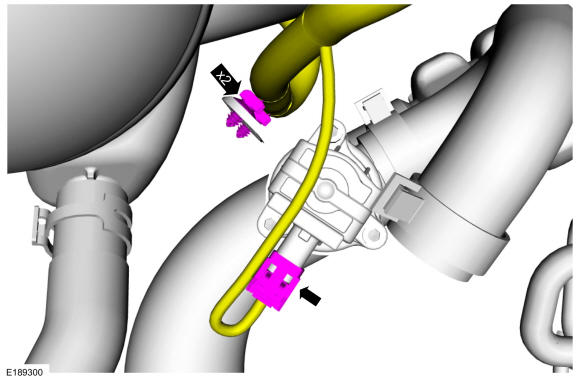

- 15.

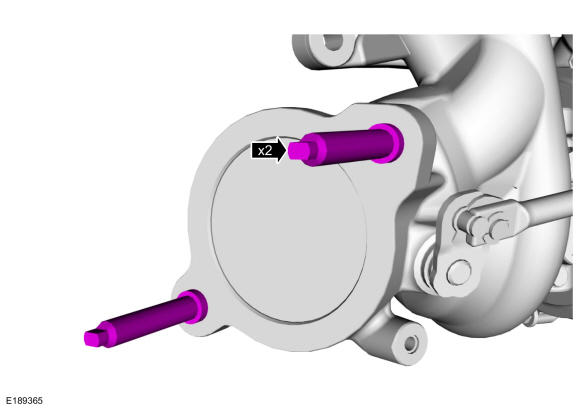

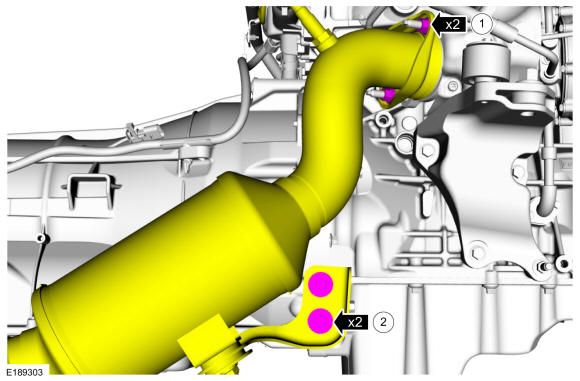

- 1.
Install and then tighten the catalytic converter flange nuts.Torque
: 30 lb.ft (40 Nm)
- 2.
Install and then tighten the catalytic converter bracket bolts.Torque
: 18 lb.ft (25 Nm)
- 1.

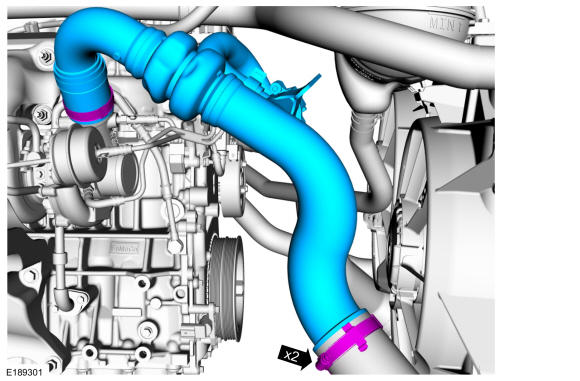

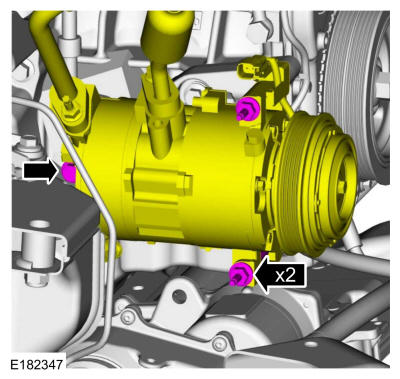

- 21.
Install the A/C Compressor Belt. Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT .
- 22.
Fill the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
