Home >> Ford >> 2015 >> Mustang EcoBoost, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Blowers, Superchargers & Turbochargers >> Fuel Charging And Controls - Turbocharger - 2.3L ECOBOOST (231KW/314PS) >> Description And Operation >> Turbocharger - Component Location >> 2.3L EcoBoost

2.3L EcoBoost

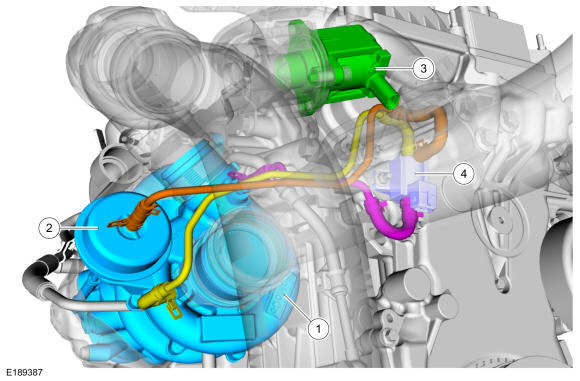

GFD7774Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger
2 Turbocharger wastegate valve
3 Turbocharger bypass valve
4 Turbocharger wastegate regulating valve control solenoid
