Rear Camber Adjustment

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1.

Using alignment equipment and the manufacturer's instructions, measure the rear camber. Use the General Equipment: Wheel Alignment System

2.

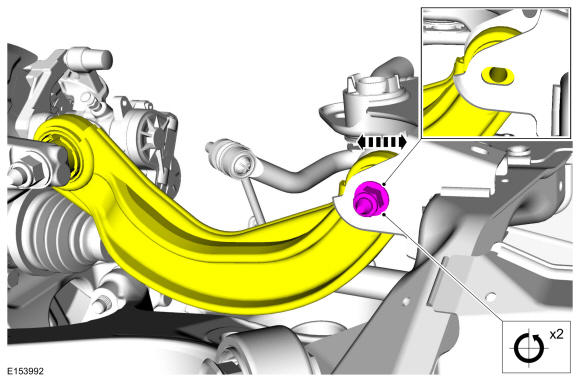

Turn the component Counterclockwise (CCW) through 2 complete turns.
Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

3.

Recheck alignment to verify camber change and adjust rear toe if necessary. REFER to: Rear Toe Adjustment
