Front Toe Adjustment

Front Toe Adjustment

Special Tool(s) / General Equipment

Adjustment

• 1.

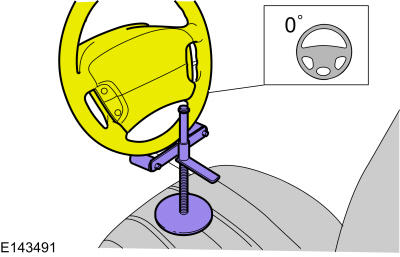

  Steering wheel in straight ahead position.

Courtesy of FORD MOTOR COMPANY

• 2.

  Using alignment equipment and the manufacturer's instructions, check front toe setting on both sides. Use the General Equipment: Wheel Alignment System

• 3.



  • 1.

    On both sides.

  • 2.

    On both sides.

    Torque

    : 52 lb.ft (70 Nm)

  • 3.


    NOTE: Make sure that the boot is correctly located.

    Rotate the inner tie-rods an equal amount in either a clockwise or a counterclockwise direction to adjust the toe setting on both sides.

Courtesy of FORD MOTOR COMPANY

• 4.


  NOTE: If equipped with Lane Departure Warning (LDW) System, camera alignment is required for the lane keeping alert and lane keeping aid to function correctly.

  Connect the scan tool and perform the IPMA camera alignment procedure. Follow the scan tool directions.
