Front Camber Adjustment

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1.

Using alignment equipment and the manufacturer's instructions, measure the front camber. Use the General Equipment: Wheel Alignment System

2.

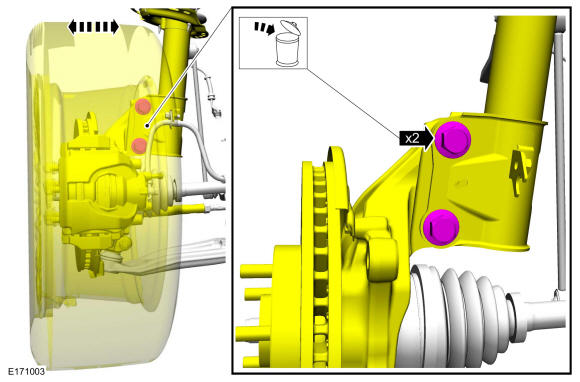

NOTE: Replace bolts and nuts with new service bolts and nuts.

NOTE: Original equipment bolts are splined, service bolts are smooth and smaller in diameter.

NOTE: Adjustment from maximum inboard to maximum outboard is.5°.

Torque

: 173 lb.ft (235 Nm)

Courtesy of FORD MOTOR COMPANY

3.

Recheck alignment to verify camber change and adjust front toe if necessary. REFER to: Front Toe Adjustment
