Wheel Bearing and Wheel Hub - FWD: Installation

Vehicles with bearing mounted wheel speed sensor

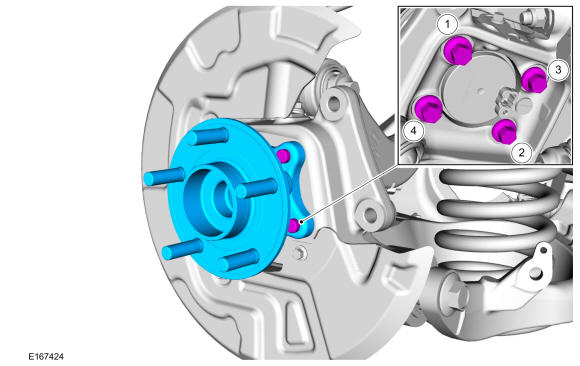

• 1.

  Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.

  Torque

  : 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY

• 2.

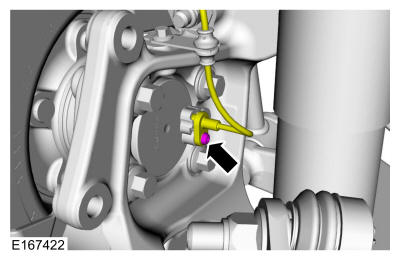

  Position the wheel speed sensor and install the wheel speed sensor screw.

  Torque

  : 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with knuckle mounted wheel speed sensor

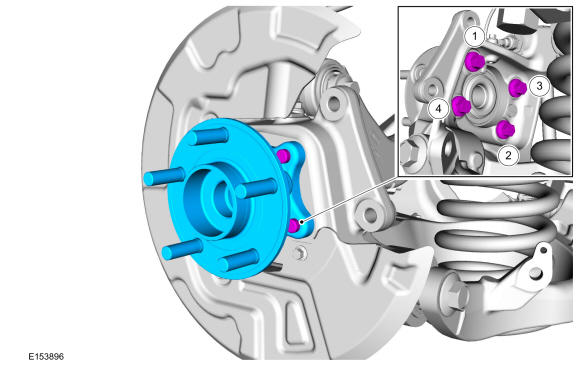

• 3.

  Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.

  Torque

  : 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

• 4.

  Install the brake disc. Refer to: Brake Disc
