Toe Link: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1.

Remove the wheel and tire. Refer to: Wheel and Tire

2.

Support the rear suspension to ride height. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

3.

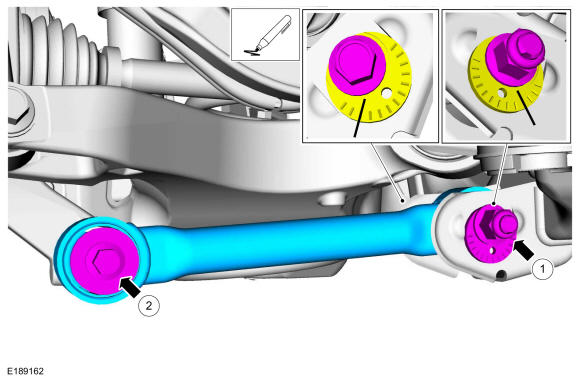

Index mark the cam adjusters for reference during installation.
- 1.

  Remove the toe link-to-subframe cam bolt and nut.
- 2.

  Remove the toe link-to-wheel knuckle bolt.

Courtesy of FORD MOTOR COMPANY
