Toe Link: Installation

1.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

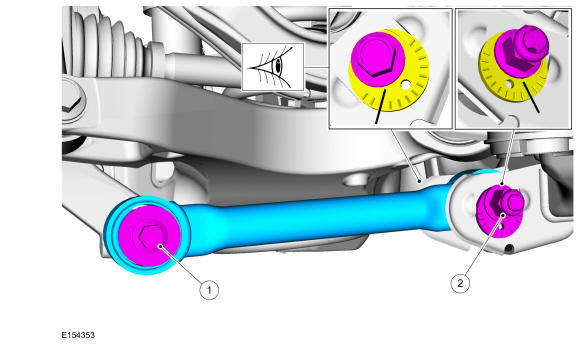

Align reference marks made during removal.
- 1.

  Install the toe link-to-wheel knuckle bolt.
  Torque

  : 76 lb.ft (103 Nm)
- 2.

  Install the toe link-to-subframe cam bolt and nut.
  Torque

  : 129 lb.ft (175 Nm)

GFD66541

Courtesy of FORD MOTOR COMPANY

2.

Install the wheel and tire. Refer to: Wheel and Tire

3.

Check and if necessary adjust rear toe. Refer to: Rear Toe Adjustment
