Removal And Installation: Spring: Installation

1.

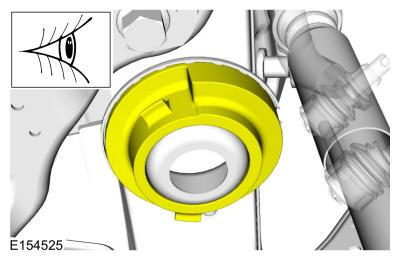

Visual check.Check the upper spring seat for damage. Replace as necessary.

GFD66534

Courtesy of FORD MOTOR COMPANY

2.

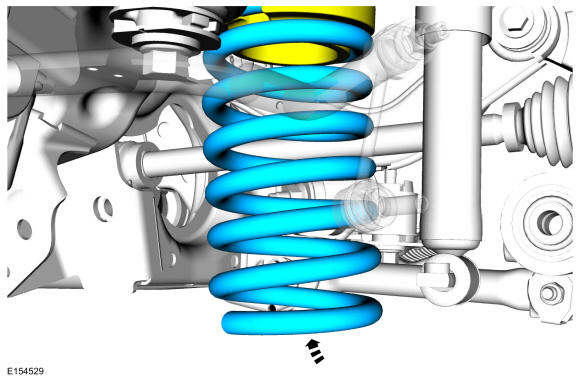

Install the spring.

GFD66535

Courtesy of FORD MOTOR COMPANY

3.

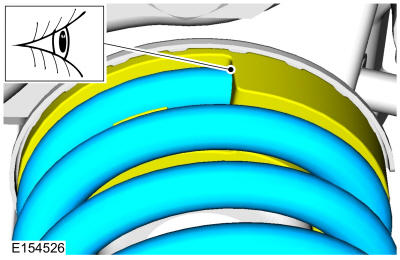

NOTE: Make sure that the spring is correctly located in the upper spring seat.

Visual check.Align the spring in the upper spring seat.

GFD66536

Courtesy of FORD MOTOR COMPANY

4.

Install the lower arm. Refer to: Lower Arm
