Lower Arm Vertical Link: Installation

1.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

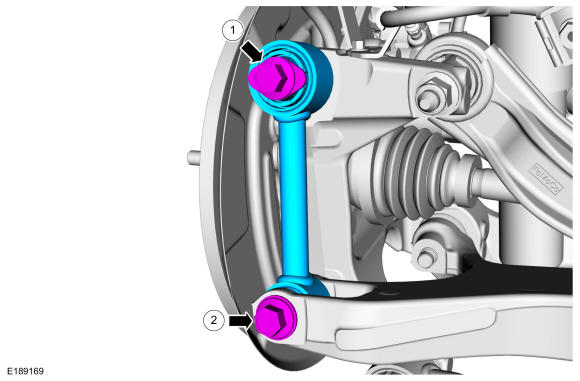

Position the lower arm vertical link.
- 1.

  Install the lower arm vertical link-to-wheel knuckle bolt
  Torque

  : 129 lb.ft (175 Nm)
- 2.

  Install lower arm vertical link-to-lower arm bolt
  Torque

  : 129 lb.ft (175 Nm)

GFD66553

Courtesy of FORD MOTOR COMPANY

2.

Install the wheel and tire. Refer to: Wheel and Tire
