Parking Brake Switch: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

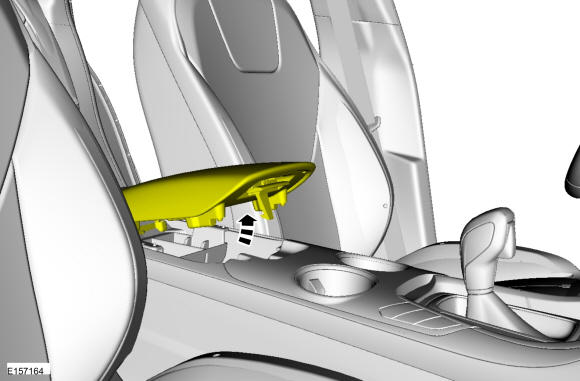

Open the floor console stowage bin lid.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

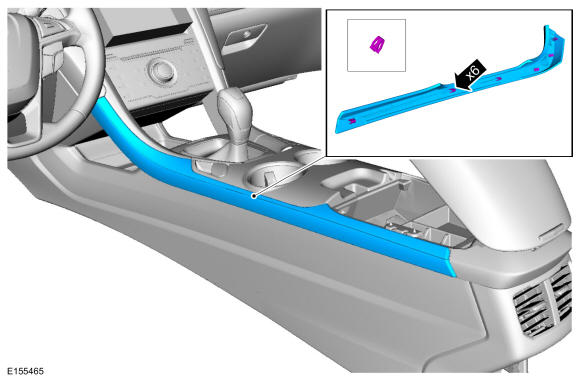

On both sides. Detach the clips and remove the floor console upper side finish panels.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

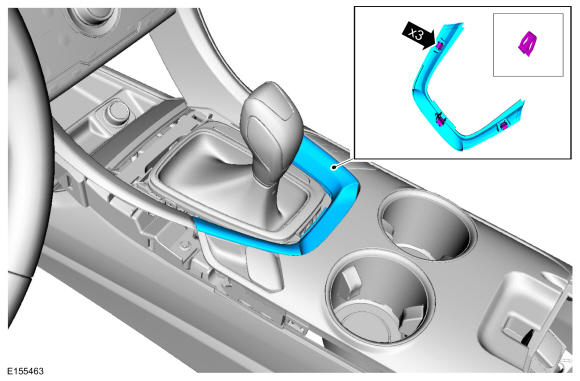

Detach the clips and remove the transmission selector lever finish panel.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

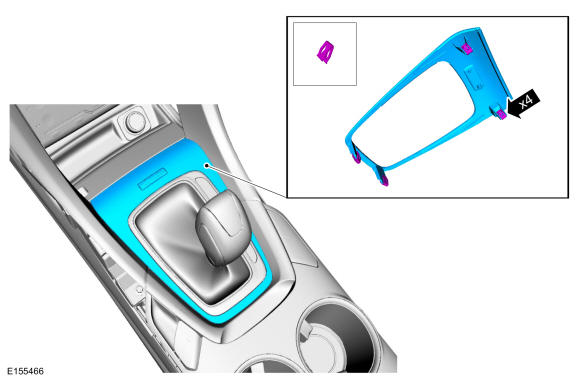

Detach the clips and remove the upper floor console finish panel.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

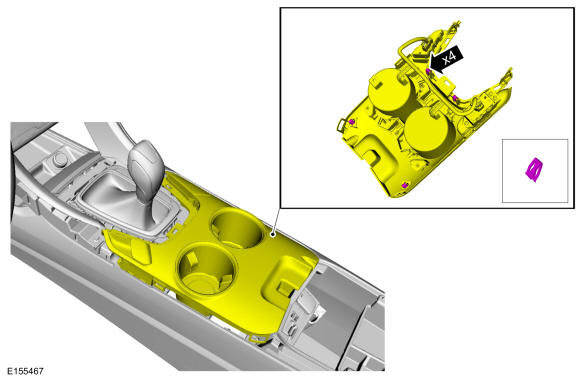

Detach the clips and position the floor console upper trim panel, cup holder and switch assembly to access the EPB switch.
 Courtesy of FORD MOTOR COMPANY
|
- 6.

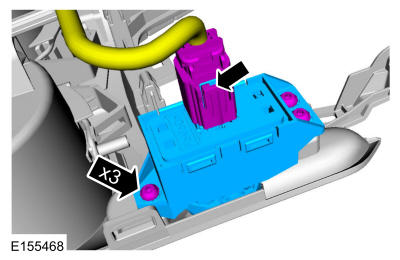

Disconnect the electrical connector, remove the 3 screws and the EPB switch.
 Courtesy of FORD MOTOR COMPANY
|
