Section 1012 (Parking Brake System - Parking Brake Actuation (Except Hybrid))
>>
Description And Operation
>>
Parking Brake - System Operation and Component Description
>>
System Operation
>>

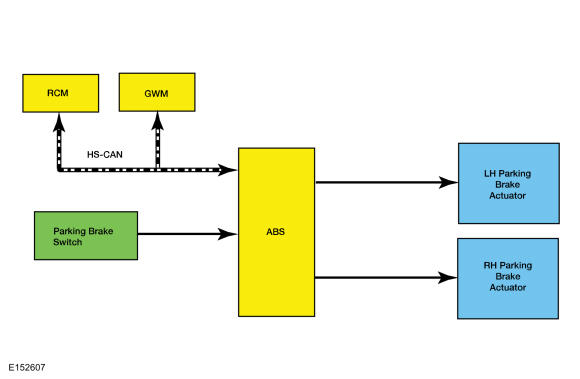

System Diagram
System Diagram
WARNING:
This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
