Roof Opening Panel

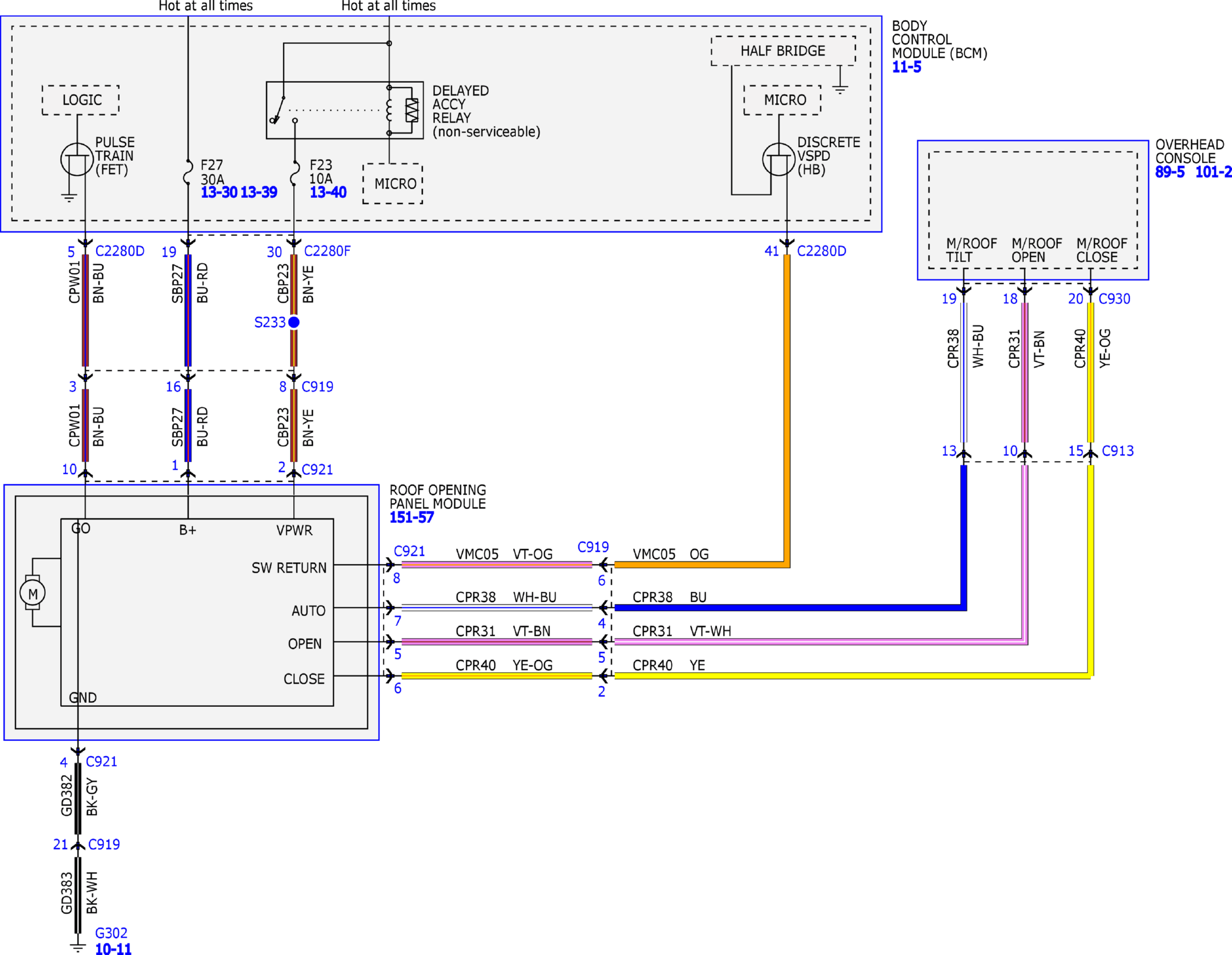

Fig 1: Roof Opening Panel Wiring Diagram (1 of 3)
GFDW26189Courtesy of FORD MOTOR COMPANY

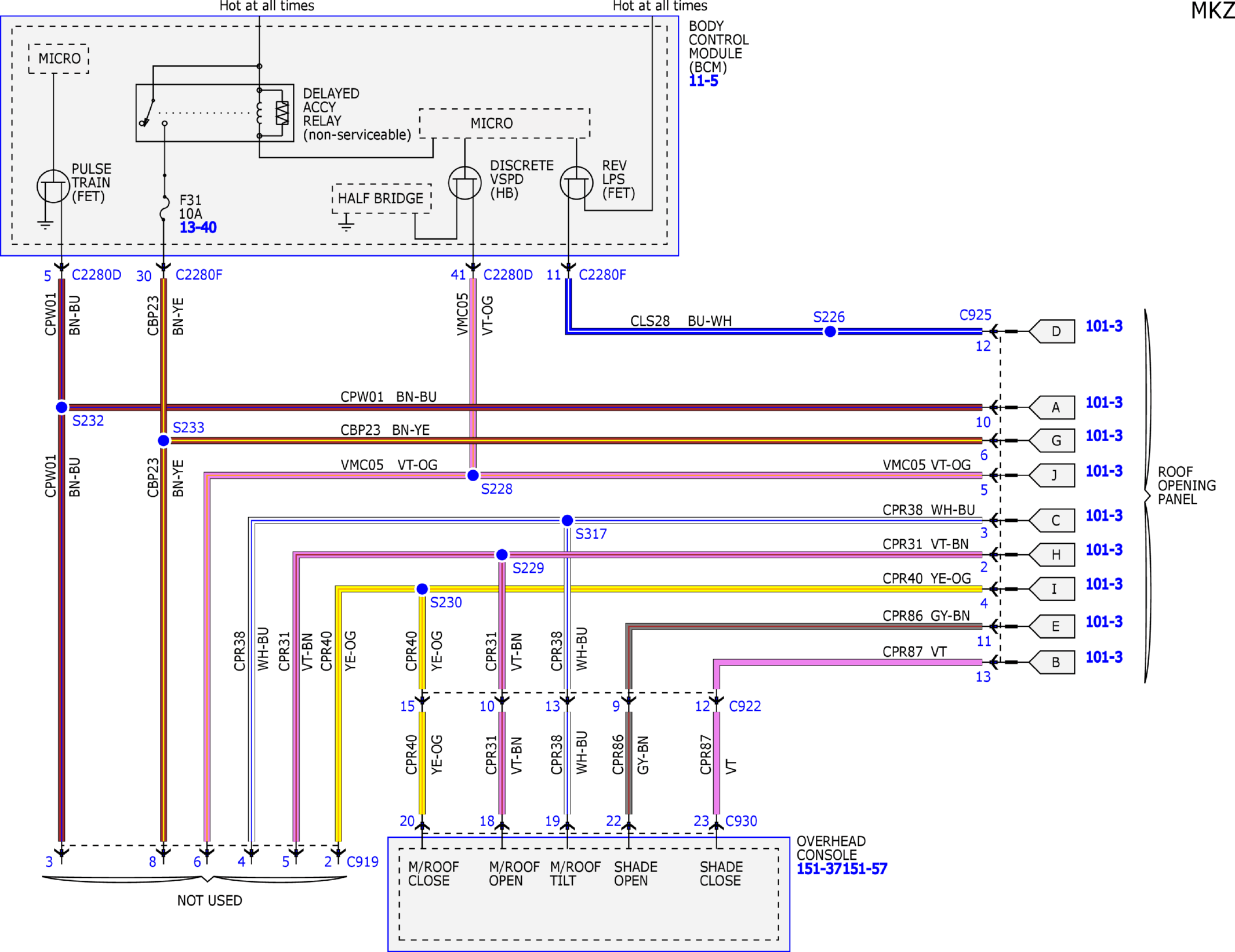

Fig 2: Roof Opening Panel Wiring Diagram (2 of 3)
GFDW26190Courtesy of FORD MOTOR COMPANY

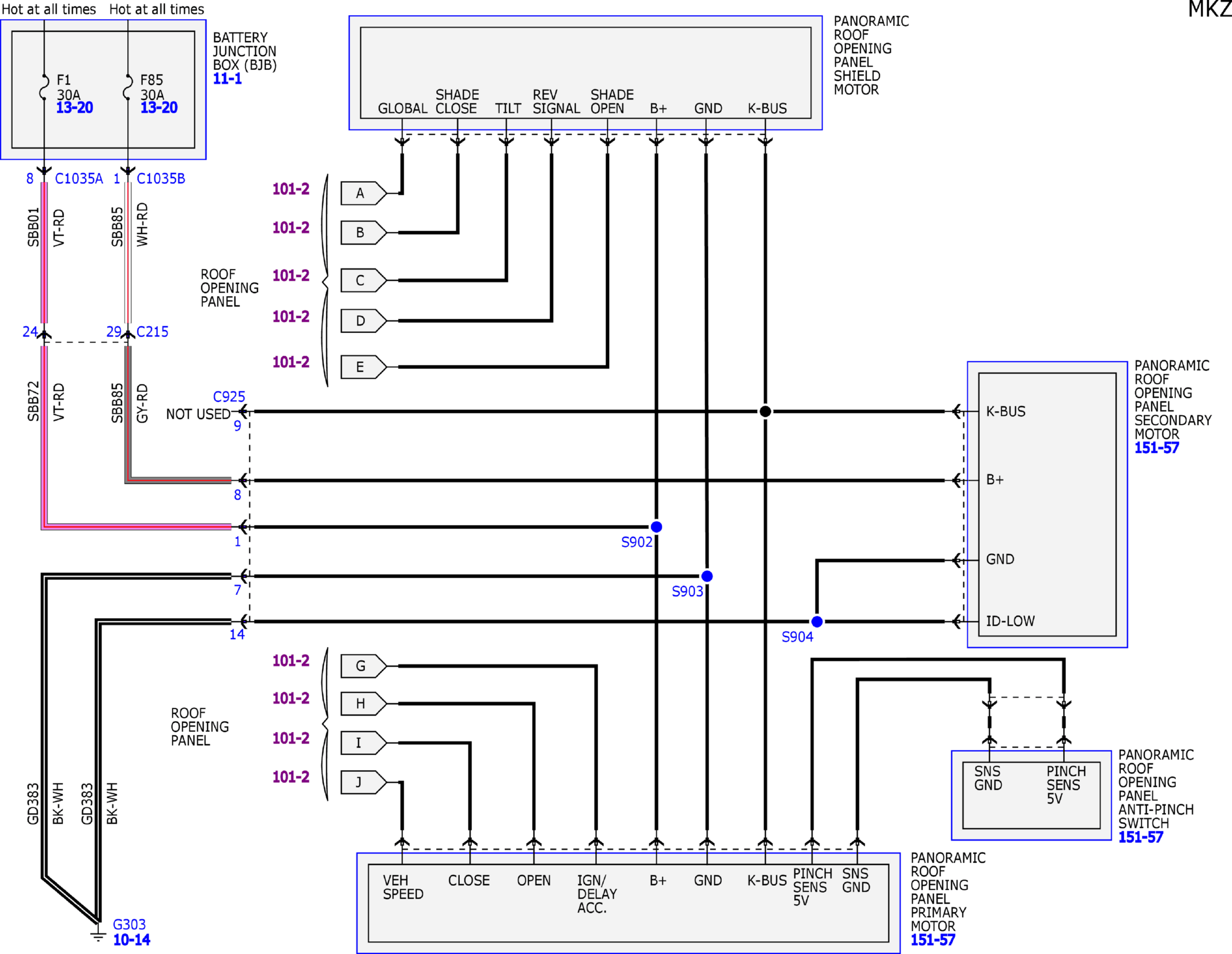

Fig 3: Roof Opening Panel Wiring Diagram (3 of 3)
GFDW26191Courtesy of FORD MOTOR COMPANY
