Ford
>>
2015
>>
Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Except Hybrid/ENERGI)
>>
Power Mirrors
Power Mirrors

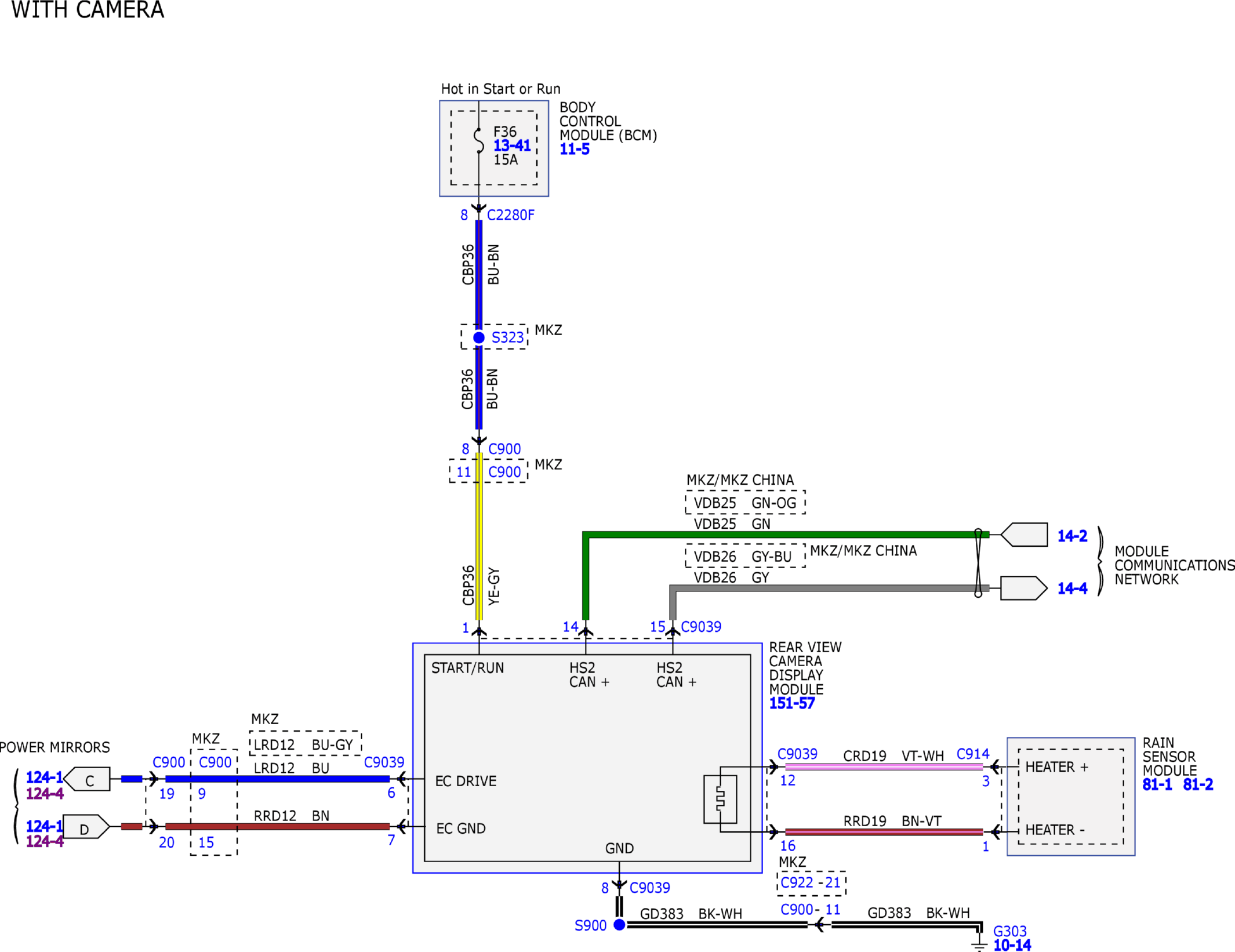

Fig 1: Power Mirrors Wiring Diagram (1 of 5)
Courtesy of FORD MOTOR COMPANY

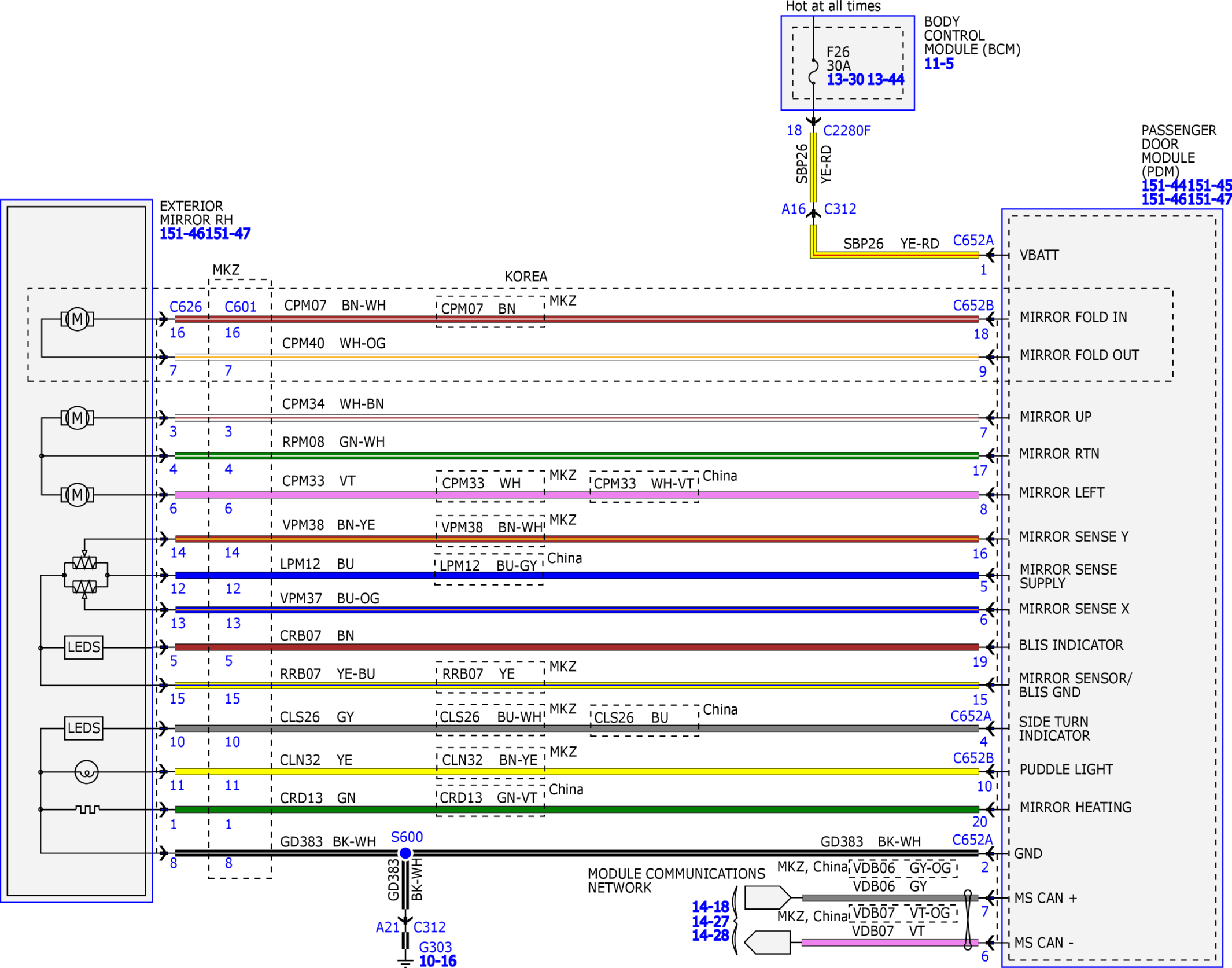

Fig 2: Power Mirrors Wiring Diagram (2 of 5)
Courtesy of FORD MOTOR COMPANY

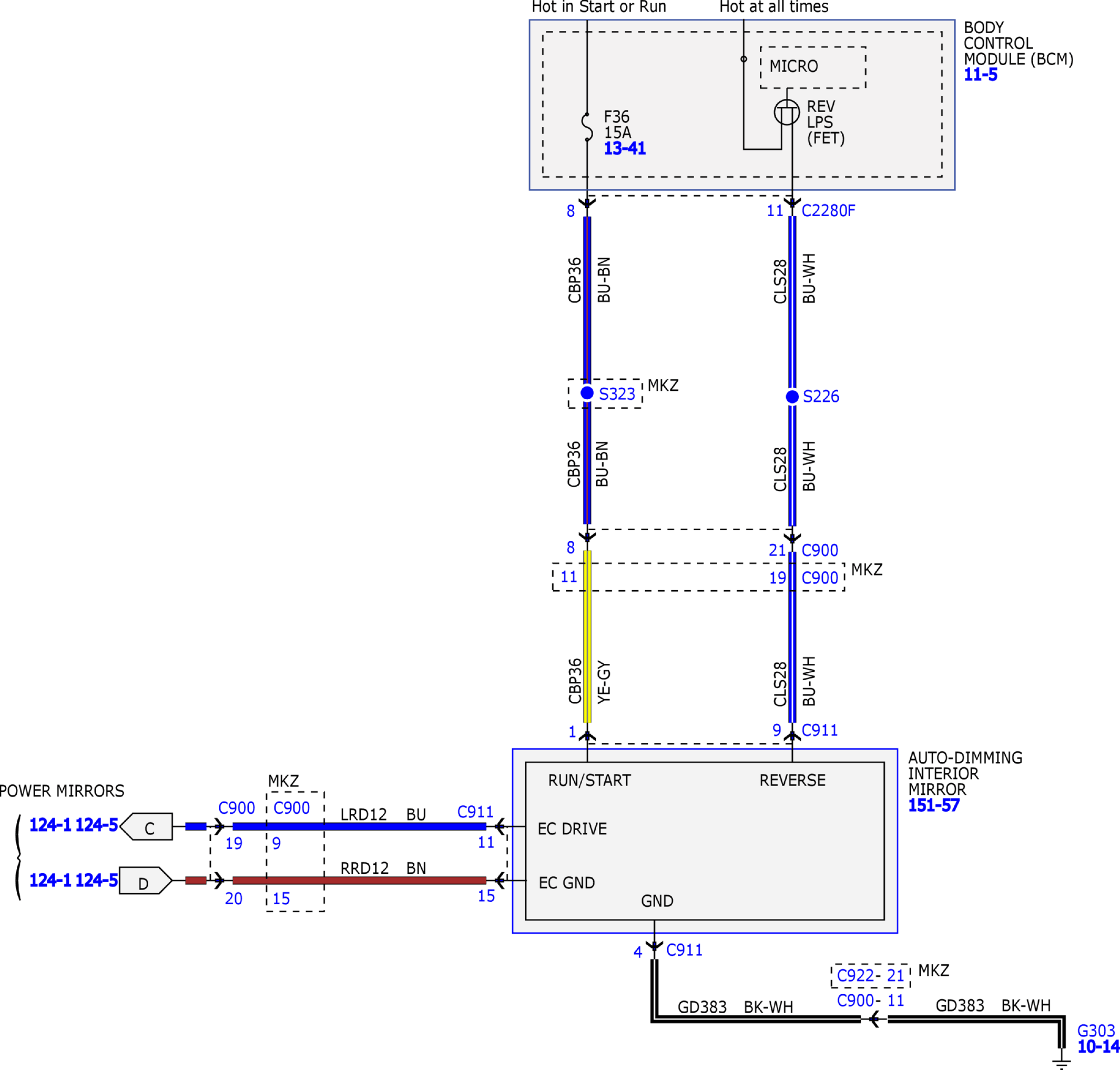

Fig 3: Power Mirrors Wiring Diagram (3 of 5)
Courtesy of FORD MOTOR COMPANY

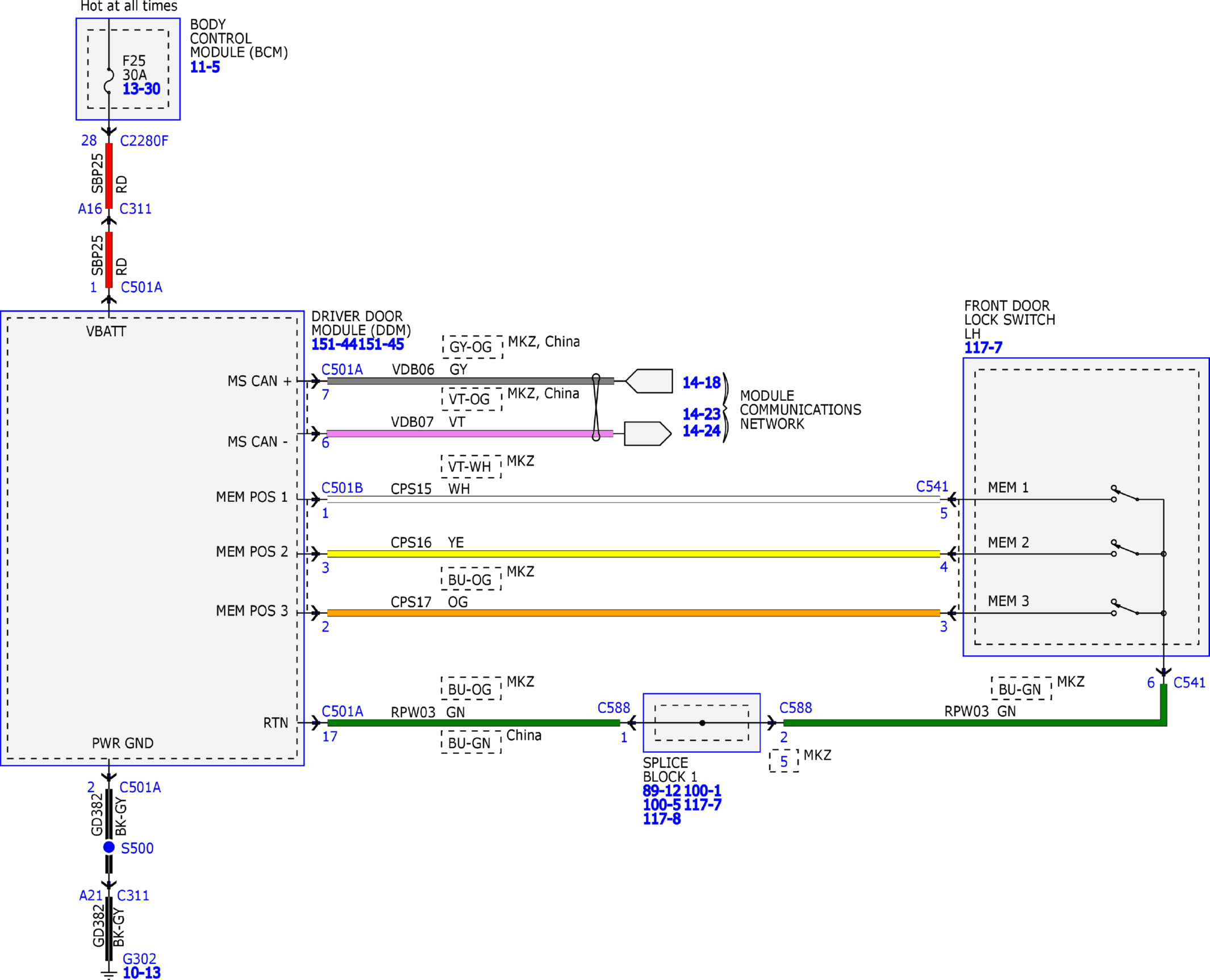

Fig 4: Power Mirrors Wiring Diagram (4 of 5)
Courtesy of FORD MOTOR COMPANY

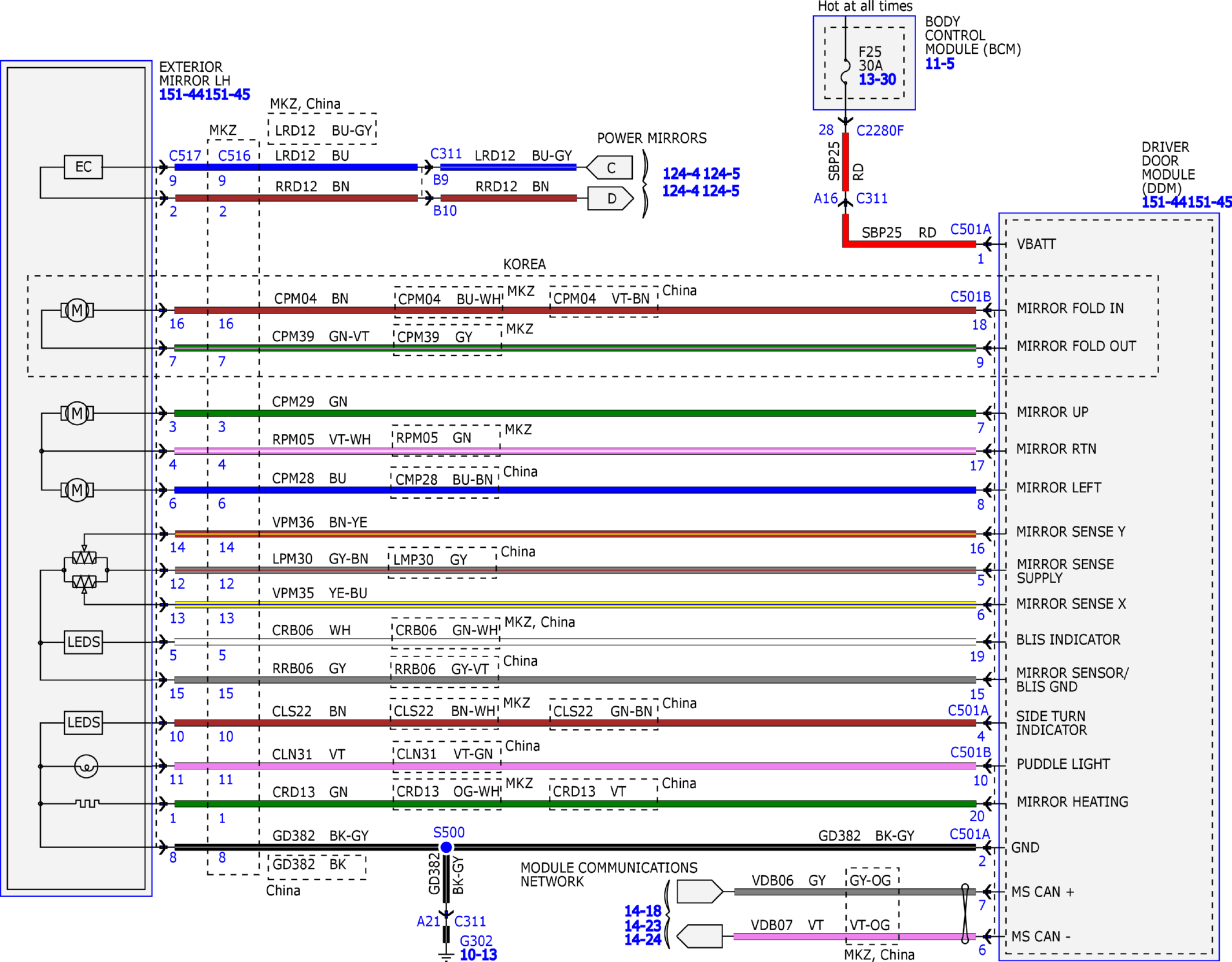

Fig 5: Power Mirrors Wiring Diagram (5 of 5)
Courtesy of FORD MOTOR COMPANY
