Power Distribution

Fig 1: Power Distribution Wiring Diagram (1 of 54)

GFDW26098

Courtesy of FORD MOTOR COMPANY

Fig 2: Power Distribution Wiring Diagram (2 of 54)

GFDW26099

Courtesy of FORD MOTOR COMPANY

Fig 3: Power Distribution Wiring Diagram (3 of 54)

GFDW26100

Courtesy of FORD MOTOR COMPANY

Fig 4: Power Distribution Wiring Diagram (4 of 54)

GFDW26101

Courtesy of FORD MOTOR COMPANY

Fig 5: Power Distribution Wiring Diagram (5 of 54)

GFDW26102

Courtesy of FORD MOTOR COMPANY

Fig 6: Power Distribution Wiring Diagram (6 of 54)

GFDW26103

Courtesy of FORD MOTOR COMPANY

Fig 7: Power Distribution Wiring Diagram (7 of 54)

GFDW26104

Courtesy of FORD MOTOR COMPANY

Fig 8: Power Distribution Wiring Diagram (8 of 54)

GFDW26105

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Distribution Wiring Diagram (9 of 54)

GFDW26106

Courtesy of FORD MOTOR COMPANY

Fig 10: Power Distribution Wiring Diagram (10 of 54)

GFDW26107

Courtesy of FORD MOTOR COMPANY

Fig 11: Power Distribution Wiring Diagram (11 of 54)

GFDW26108

Courtesy of FORD MOTOR COMPANY

Fig 12: Power Distribution Wiring Diagram (12 of 54)

GFDW26109

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Distribution Wiring Diagram (13 of 54)

GFDW26110

Courtesy of FORD MOTOR COMPANY

Fig 14: Power Distribution Wiring Diagram (14 of 54)

GFDW26111

Courtesy of FORD MOTOR COMPANY

Fig 15: Power Distribution Wiring Diagram (15 of 54)

GFDW26112

Courtesy of FORD MOTOR COMPANY

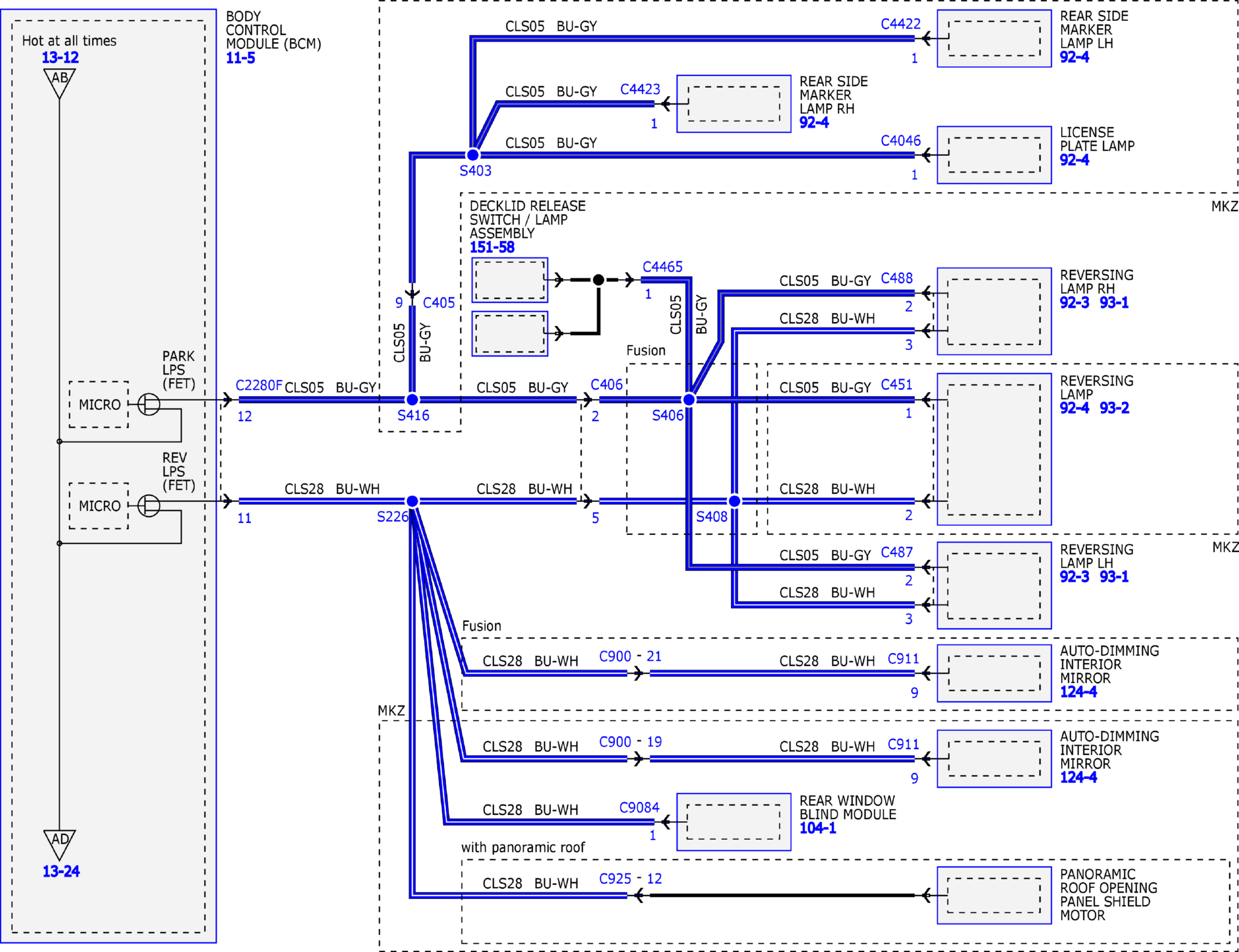

Fig 16: Power Distribution Wiring Diagram (16 of 54)

GFDW26113

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Distribution Wiring Diagram (17 of 54)

GFDW26114

Courtesy of FORD MOTOR COMPANY

Fig 18: Power Distribution Wiring Diagram (18 of 54)

GFDW26115

Courtesy of FORD MOTOR COMPANY

Fig 19: Power Distribution Wiring Diagram (19 of 54)

GFDW26116

Courtesy of FORD MOTOR COMPANY

Fig 20: Power Distribution Wiring Diagram (20 of 54)

GFDW26117

Courtesy of FORD MOTOR COMPANY

Fig 21: Power Distribution Wiring Diagram (21 of 54)

GFDW26118

Courtesy of FORD MOTOR COMPANY

Fig 22: Power Distribution Wiring Diagram (22 of 54)

GFDW26119

Courtesy of FORD MOTOR COMPANY

Fig 23: Power Distribution Wiring Diagram (23 of 54)

GFDW26120

Courtesy of FORD MOTOR COMPANY

Fig 24: Power Distribution Wiring Diagram (24 of 54)

GFDW26121

Courtesy of FORD MOTOR COMPANY

Fig 25: Power Distribution Wiring Diagram (25 of 54)

GFDW26122

Courtesy of FORD MOTOR COMPANY

Fig 26: Power Distribution Wiring Diagram (26 of 54)

GFDW26123

Courtesy of FORD MOTOR COMPANY

Fig 27: Power Distribution Wiring Diagram (27 of 54)

GFDW26124

Courtesy of FORD MOTOR COMPANY

Fig 28: Power Distribution Wiring Diagram (28 of 54)

GFDW26125

Courtesy of FORD MOTOR COMPANY

Fig 29: Power Distribution Wiring Diagram (29 of 54)

GFDW26126

Courtesy of FORD MOTOR COMPANY

Fig 30: Power Distribution Wiring Diagram (30 of 54)

GFDW26127

Courtesy of FORD MOTOR COMPANY

Fig 31: Power Distribution Wiring Diagram (31 of 54)

GFDW26128

Courtesy of FORD MOTOR COMPANY

Fig 32: Power Distribution Wiring Diagram (32 of 54)

GFDW26129

Courtesy of FORD MOTOR COMPANY

Fig 33: Power Distribution Wiring Diagram (33 of 54)

GFDW26130

Courtesy of FORD MOTOR COMPANY

Fig 34: Power Distribution Wiring Diagram (34 of 54)

GFDW26131

Courtesy of FORD MOTOR COMPANY

Fig 35: Power Distribution Wiring Diagram (35 of 54)

GFDW26132

Courtesy of FORD MOTOR COMPANY

Fig 36: Power Distribution Wiring Diagram (36 of 54)

GFDW26133

Courtesy of FORD MOTOR COMPANY

Fig 37: Power Distribution Wiring Diagram (37 of 54)

GFDW26134

Courtesy of FORD MOTOR COMPANY

Fig 38: Power Distribution Wiring Diagram (38 of 54)

GFDW26135

Courtesy of FORD MOTOR COMPANY

Fig 39: Power Distribution Wiring Diagram (39 of 54)

GFDW26136

Courtesy of FORD MOTOR COMPANY

Fig 40: Power Distribution Wiring Diagram (40 of 54)

GFDW26137

Courtesy of FORD MOTOR COMPANY

Fig 41: Power Distribution Wiring Diagram (41 of 54)

GFDW26138

Courtesy of FORD MOTOR COMPANY

Fig 42: Power Distribution Wiring Diagram (42 of 54)

GFDW26139

Courtesy of FORD MOTOR COMPANY

Fig 43: Power Distribution Wiring Diagram (43 of 54)

GFDW26140

Courtesy of FORD MOTOR COMPANY

Fig 44: Power Distribution Wiring Diagram (44 of 54)

GFDW26141

Courtesy of FORD MOTOR COMPANY

Fig 45: Power Distribution Wiring Diagram (45 of 54)

GFDW26142

Courtesy of FORD MOTOR COMPANY

Fig 46: Power Distribution Wiring Diagram (46 of 54)

GFDW26143

Courtesy of FORD MOTOR COMPANY

Fig 47: Power Distribution Wiring Diagram (47 of 54)

GFDW26144

Courtesy of FORD MOTOR COMPANY

Fig 48: Power Distribution Wiring Diagram (48 of 54)

GFDW26145

Courtesy of FORD MOTOR COMPANY

Fig 49: Power Distribution Wiring Diagram (49 of 54)

GFDW26146

Courtesy of FORD MOTOR COMPANY

Fig 50: Power Distribution Wiring Diagram (50 of 54)

GFDW26147

Courtesy of FORD MOTOR COMPANY

Fig 51: Power Distribution Wiring Diagram (51 of 54)

GFDW26148

Courtesy of FORD MOTOR COMPANY

Fig 52: Power Distribution Wiring Diagram (52 of 54)

GFDW26149

Courtesy of FORD MOTOR COMPANY

Fig 53: Power Distribution Wiring Diagram (53 of 54)

GFDW26150

Courtesy of FORD MOTOR COMPANY

Fig 54: Power Distribution Wiring Diagram (54 of 54)

GFDW26151

Courtesy of FORD MOTOR COMPANY
