Module Communications Network

Fig 1: Module Communications Network Wiring Diagram (1 of 28)

GFDW26059

Courtesy of FORD MOTOR COMPANY

Fig 2: Module Communications Network Wiring Diagram (2 of 28)

GFDW26060

Courtesy of FORD MOTOR COMPANY

Fig 3: Module Communications Network Wiring Diagram (3 of 28)

GFDW26061

Courtesy of FORD MOTOR COMPANY

Fig 4: Module Communications Network Wiring Diagram (4 of 28)

GFDW26062

Courtesy of FORD MOTOR COMPANY

Fig 5: Module Communications Network Wiring Diagram (5 of 28)

GFDW26063

Courtesy of FORD MOTOR COMPANY

Fig 6: Module Communications Network Wiring Diagram (6 of 28)

GFDW26064

Courtesy of FORD MOTOR COMPANY

Fig 7: Module Communications Network Wiring Diagram (7 of 28)

GFDW26065

Courtesy of FORD MOTOR COMPANY

Fig 8: Module Communications Network Wiring Diagram (8 of 28)

GFDW26066

Courtesy of FORD MOTOR COMPANY

Fig 9: Module Communications Network Wiring Diagram (9 of 28)

GFDW26067

Courtesy of FORD MOTOR COMPANY

Fig 10: Module Communications Network Wiring Diagram (10 of 28)

GFDW26068

Courtesy of FORD MOTOR COMPANY

Fig 11: Module Communications Network Wiring Diagram (11 of 28)

GFDW26069

Courtesy of FORD MOTOR COMPANY

Fig 12: Module Communications Network Wiring Diagram (12 of 28)

GFDW26070

Courtesy of FORD MOTOR COMPANY

Fig 13: Module Communications Network Wiring Diagram (13 of 28)

GFDW26071

Courtesy of FORD MOTOR COMPANY

Fig 14: Module Communications Network Wiring Diagram (14 of 28)

GFDW26072

Courtesy of FORD MOTOR COMPANY

Fig 15: Module Communications Network Wiring Diagram (15 of 28)

GFDW26073

Courtesy of FORD MOTOR COMPANY

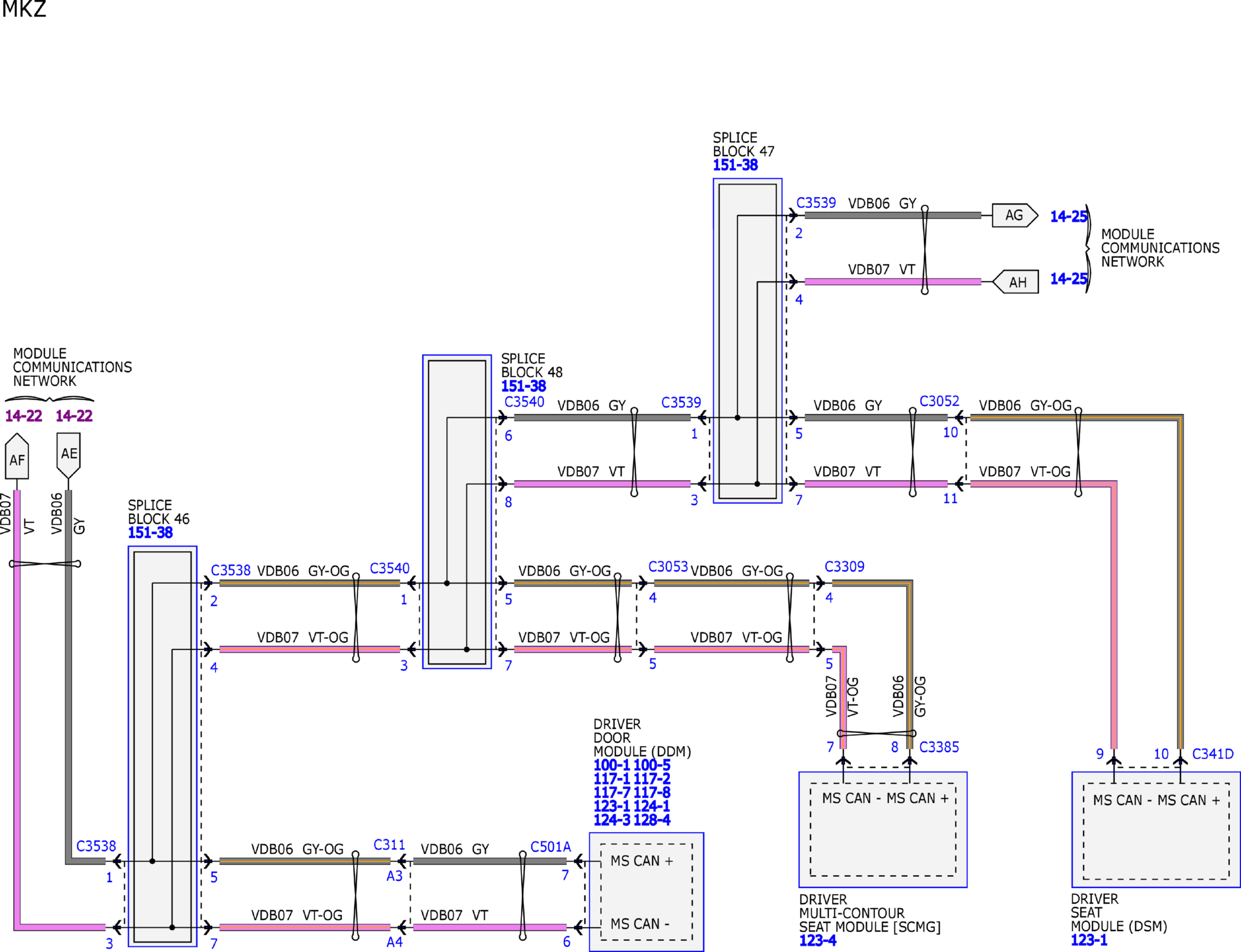

Fig 16: Module Communications Network Wiring Diagram (16 of 28)

GFDW26074

Courtesy of FORD MOTOR COMPANY

Fig 17: Module Communications Network Wiring Diagram (17 of 28)

GFDW26075

Courtesy of FORD MOTOR COMPANY

Fig 18: Module Communications Network Wiring Diagram (18 of 28)

GFDW26076

Courtesy of FORD MOTOR COMPANY

Fig 19: Module Communications Network Wiring Diagram (19 of 28)

GFDW26077

Courtesy of FORD MOTOR COMPANY

Fig 20: Module Communications Network Wiring Diagram (20 of 28)

GFDW26078

Courtesy of FORD MOTOR COMPANY

Fig 21: Module Communications Network Wiring Diagram (21 of 28)

GFDW26079

Courtesy of FORD MOTOR COMPANY

Fig 22: Module Communications Network Wiring Diagram (22 of 28)

GFDW26080

Courtesy of FORD MOTOR COMPANY

Fig 23: Module Communications Network Wiring Diagram (23 of 28)

GFDW26081

Courtesy of FORD MOTOR COMPANY

Fig 24: Module Communications Network Wiring Diagram (24 of 28)

GFDW26082

Courtesy of FORD MOTOR COMPANY

Fig 25: Module Communications Network Wiring Diagram (25 of 28)

GFDW26083

Courtesy of FORD MOTOR COMPANY

Fig 26: Module Communications Network Wiring Diagram (26 of 28)

GFDW26084

Courtesy of FORD MOTOR COMPANY

Fig 27: Module Communications Network Wiring Diagram (27 of 28)

GFDW26085

Courtesy of FORD MOTOR COMPANY

Fig 28: Module Communications Network Wiring Diagram (28 of 28)

GFDW26086

Courtesy of FORD MOTOR COMPANY
