Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Except Hybrid/ENERGI)
>>
Manual Climate Control System
Manual Climate Control System

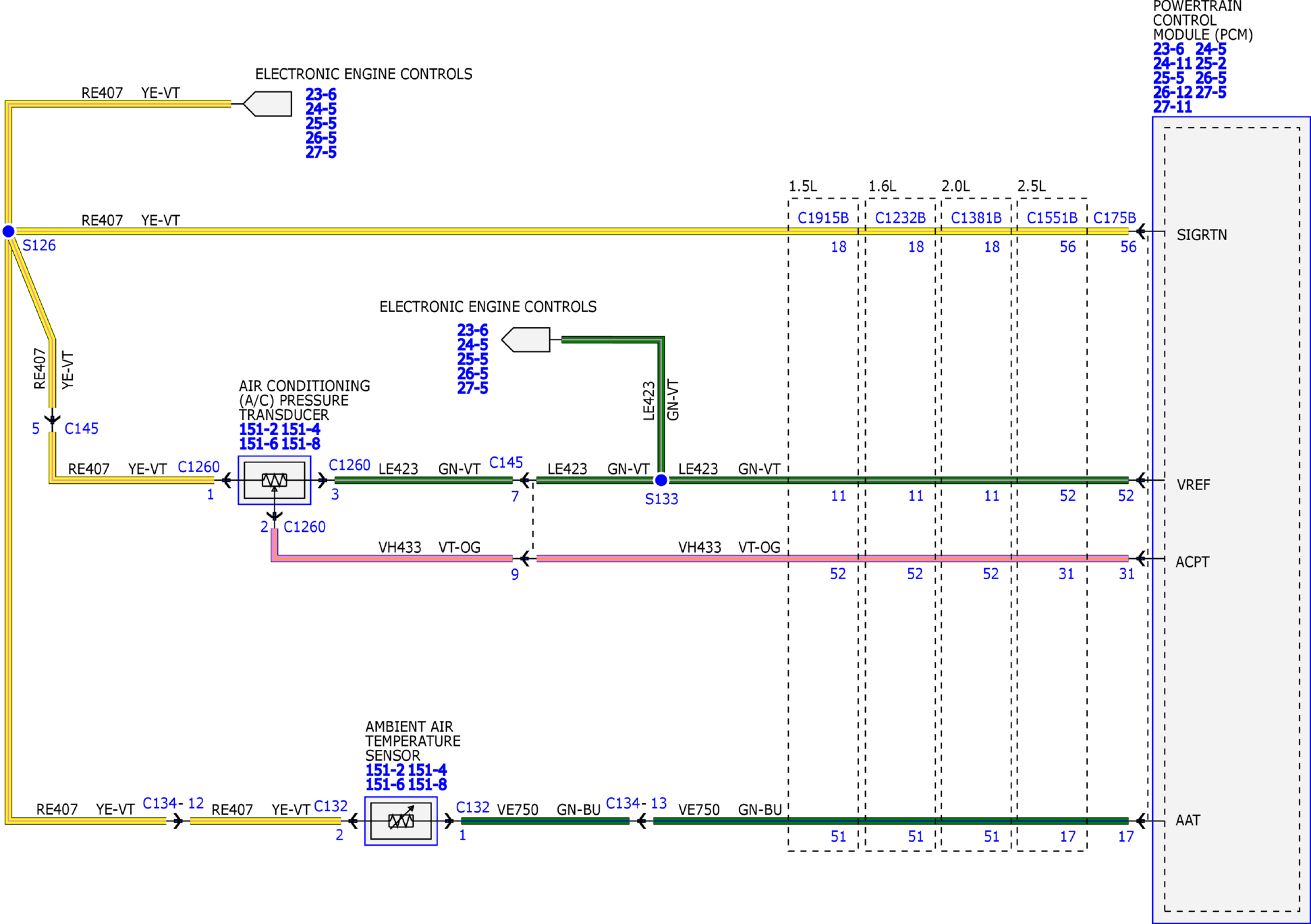

Fig 1: Manual Climate Control System Wiring Diagram (1 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 2: Manual Climate Control System Wiring Diagram (2 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 3: Manual Climate Control System Wiring Diagram (3 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 4: Manual Climate Control System Wiring Diagram (4 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 5: Manual Climate Control System Wiring Diagram (5 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 6: Manual Climate Control System Wiring Diagram (6 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 7: Manual Climate Control System Wiring Diagram (7 of 7)
Courtesy of FORD MOTOR COMPANY
