Electronic Engine Controls - 1.6L

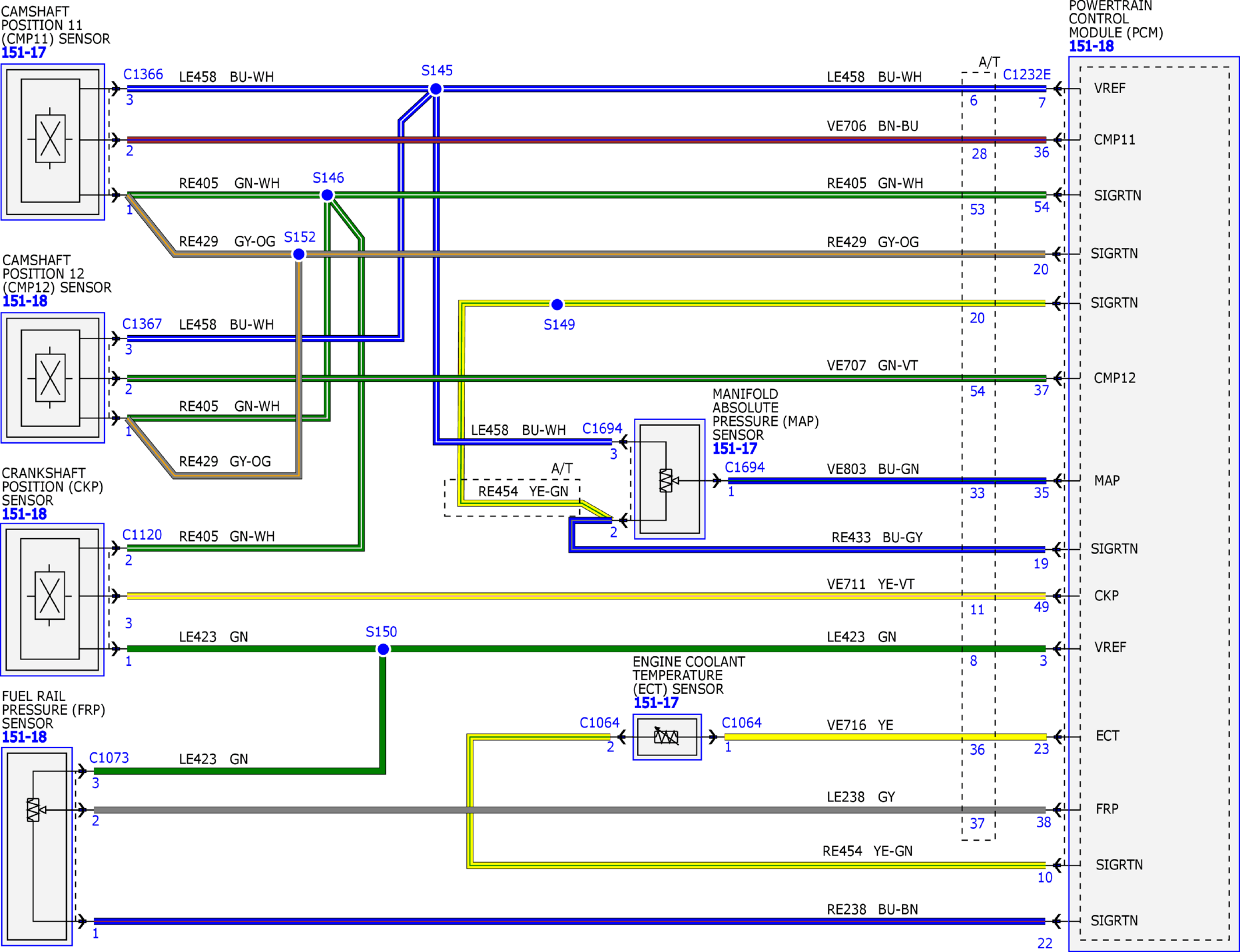

Fig 1: Electronic Engine Controls - 1.6L Wiring Diagram (1 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 2: Electronic Engine Controls - 1.6L Wiring Diagram (2 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 3: Electronic Engine Controls - 1.6L Wiring Diagram (3 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 4: Electronic Engine Controls - 1.6L Wiring Diagram (4 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 5: Electronic Engine Controls - 1.6L Wiring Diagram (5 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 6: Electronic Engine Controls - 1.6L Wiring Diagram (6 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 7: Electronic Engine Controls - 1.6L Wiring Diagram (7 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 8: Electronic Engine Controls - 1.6L Wiring Diagram (8 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 1.6L Wiring Diagram (9 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 1.6L Wiring Diagram (10 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 1.6L Wiring Diagram (11 of 11)

Courtesy of FORD MOTOR COMPANY
