Cruise Control

Fig 1: Cruise Control Wiring Diagram (1 of 8)
GFDW25952Courtesy of FORD MOTOR COMPANY
Fig 2: Cruise Control Wiring Diagram (2 of 8)
GFDW25953Courtesy of FORD MOTOR COMPANY
Fig 3: Cruise Control Wiring Diagram (3 of 8)
GFDW25954Courtesy of FORD MOTOR COMPANY
Fig 4: Cruise Control Wiring Diagram (4 of 8)
GFDW25955Courtesy of FORD MOTOR COMPANY
Fig 5: Cruise Control Wiring Diagram (5 of 8)
GFDW25956Courtesy of FORD MOTOR COMPANY

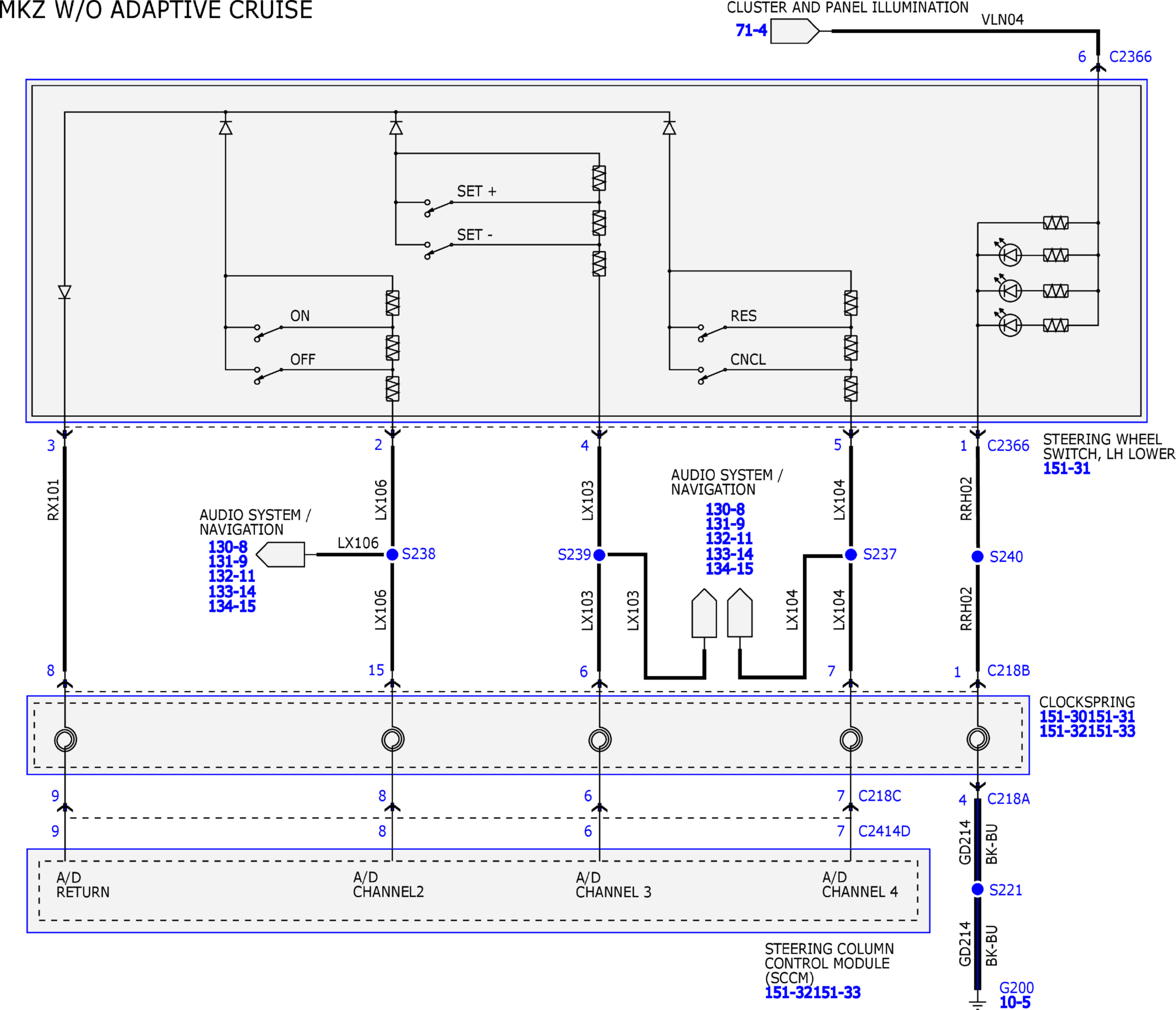

Fig 6: Cruise Control Wiring Diagram (6 of 8)
GFDW25957Courtesy of FORD MOTOR COMPANY
Fig 7: Cruise Control Wiring Diagram (7 of 8)
GFDW25958Courtesy of FORD MOTOR COMPANY
Fig 8: Cruise Control Wiring Diagram (8 of 8)
GFDW25959Courtesy of FORD MOTOR COMPANY
