Automatic Climate Control System

Fig 1: Automatic Climate Control System Wiring Diagram (1 of 8)
GFDW25925Courtesy of FORD MOTOR COMPANY

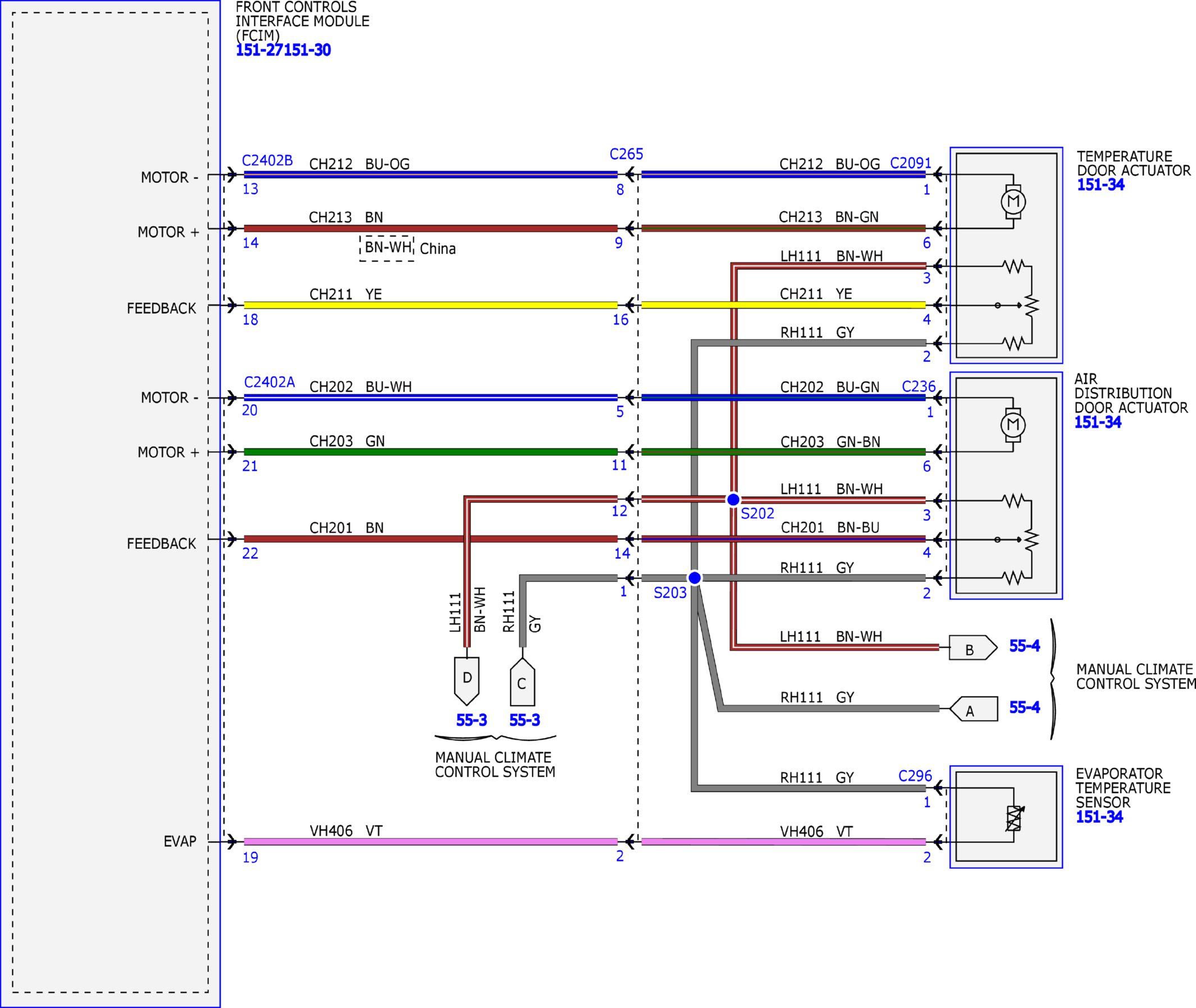

Fig 2: Automatic Climate Control System Wiring Diagram (2 of 8)
GFDW25926Courtesy of FORD MOTOR COMPANY
Fig 3: Automatic Climate Control System Wiring Diagram (3 of 8)
GFDW25927Courtesy of FORD MOTOR COMPANY
Fig 4: Automatic Climate Control System Wiring Diagram (4 of 8)
GFDW25928Courtesy of FORD MOTOR COMPANY
Fig 5: Automatic Climate Control System Wiring Diagram (5 of 8)
GFDW25929Courtesy of FORD MOTOR COMPANY
Fig 6: Automatic Climate Control System Wiring Diagram (6 of 8)
GFDW25930Courtesy of FORD MOTOR COMPANY
Fig 7: Automatic Climate Control System Wiring Diagram (7 of 8)
GFDW25931Courtesy of FORD MOTOR COMPANY
Fig 8: Automatic Climate Control System Wiring Diagram (8 of 8)
GFDW25932Courtesy of FORD MOTOR COMPANY
