OEM Wiring Diagram Symbols (Except Hybrid/ENERGI): Symbols

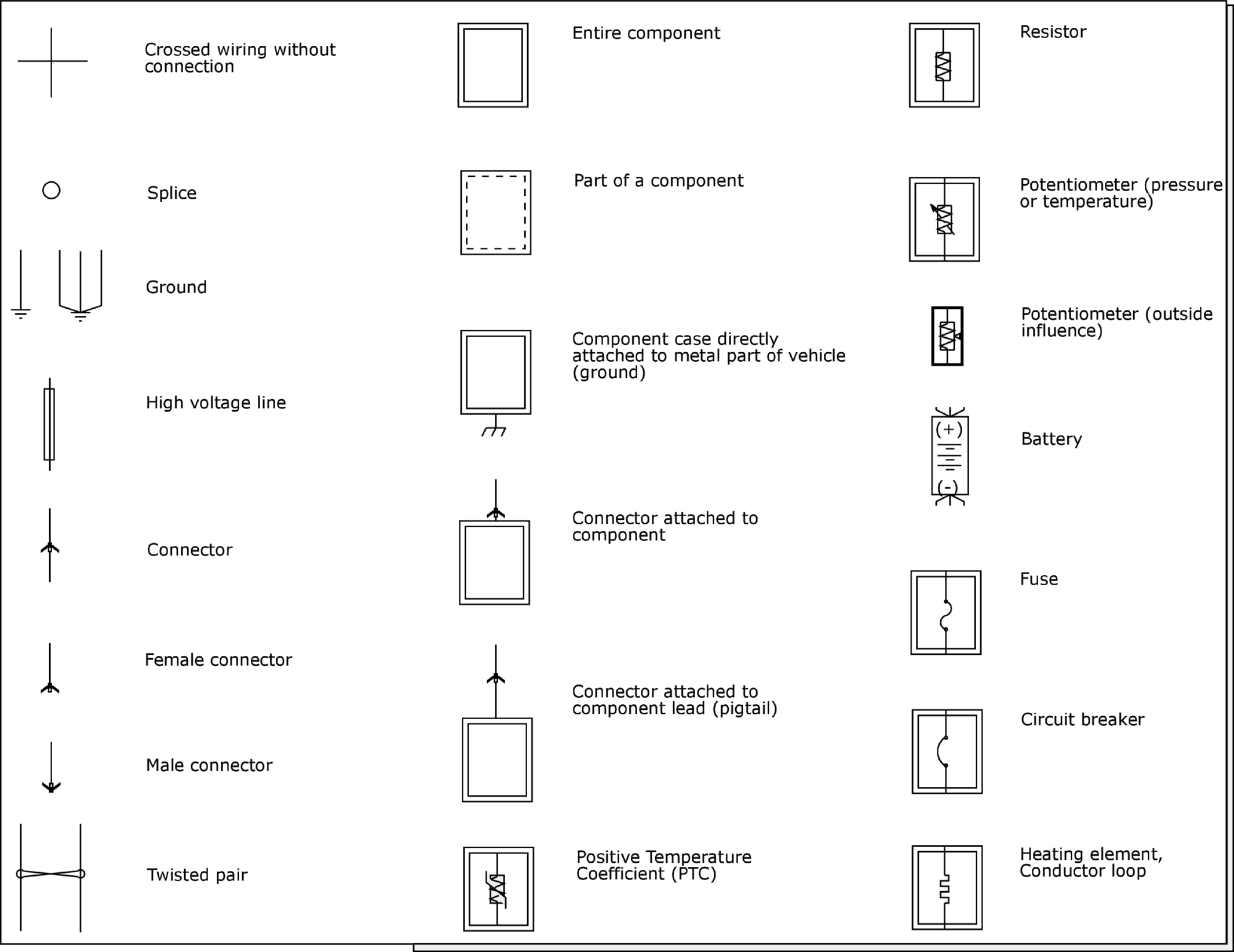

GFDW26249Courtesy of FORD MOTOR COMPANY

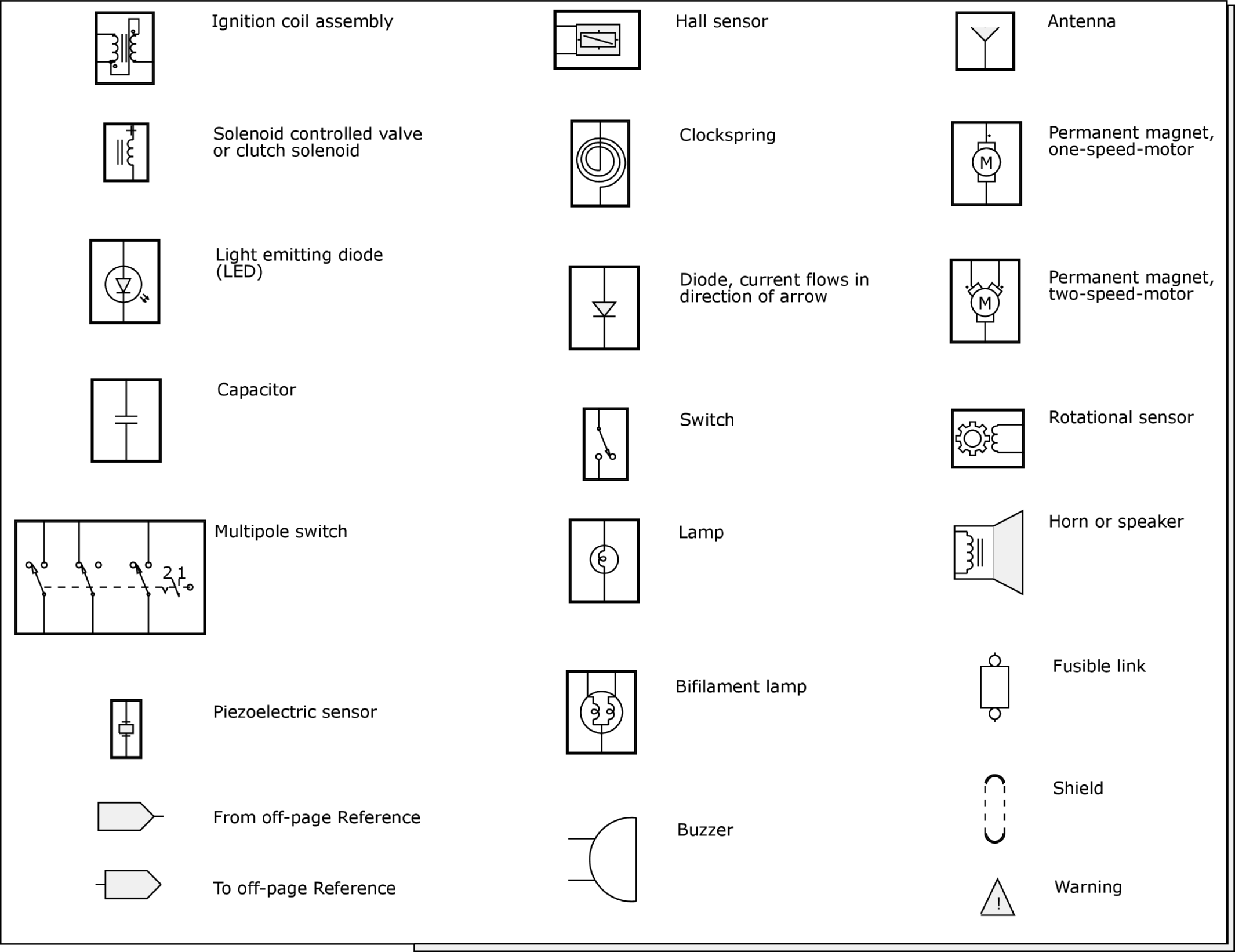

GFDW26250Courtesy of FORD MOTOR COMPANY

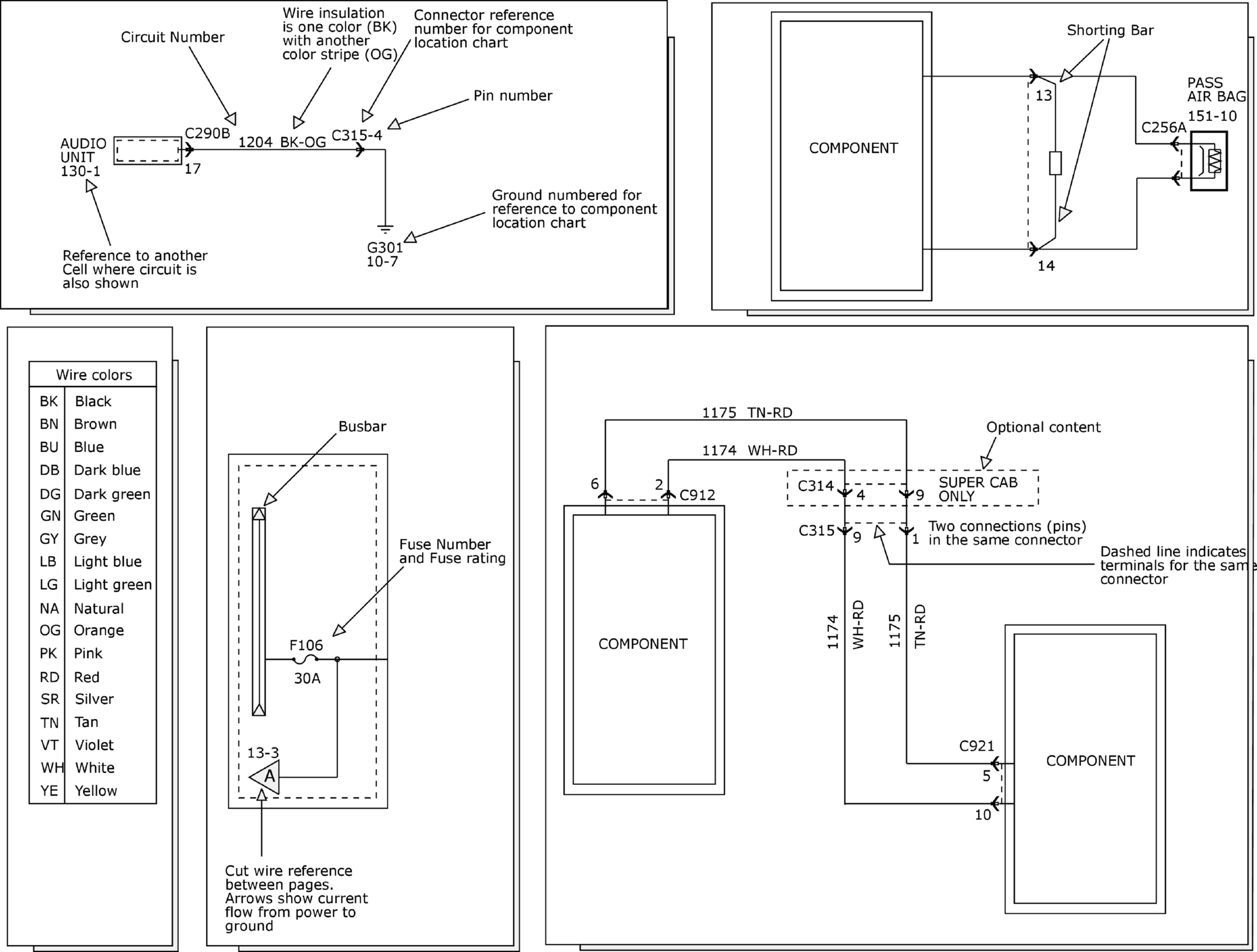

GFDW26251Courtesy of FORD MOTOR COMPANY

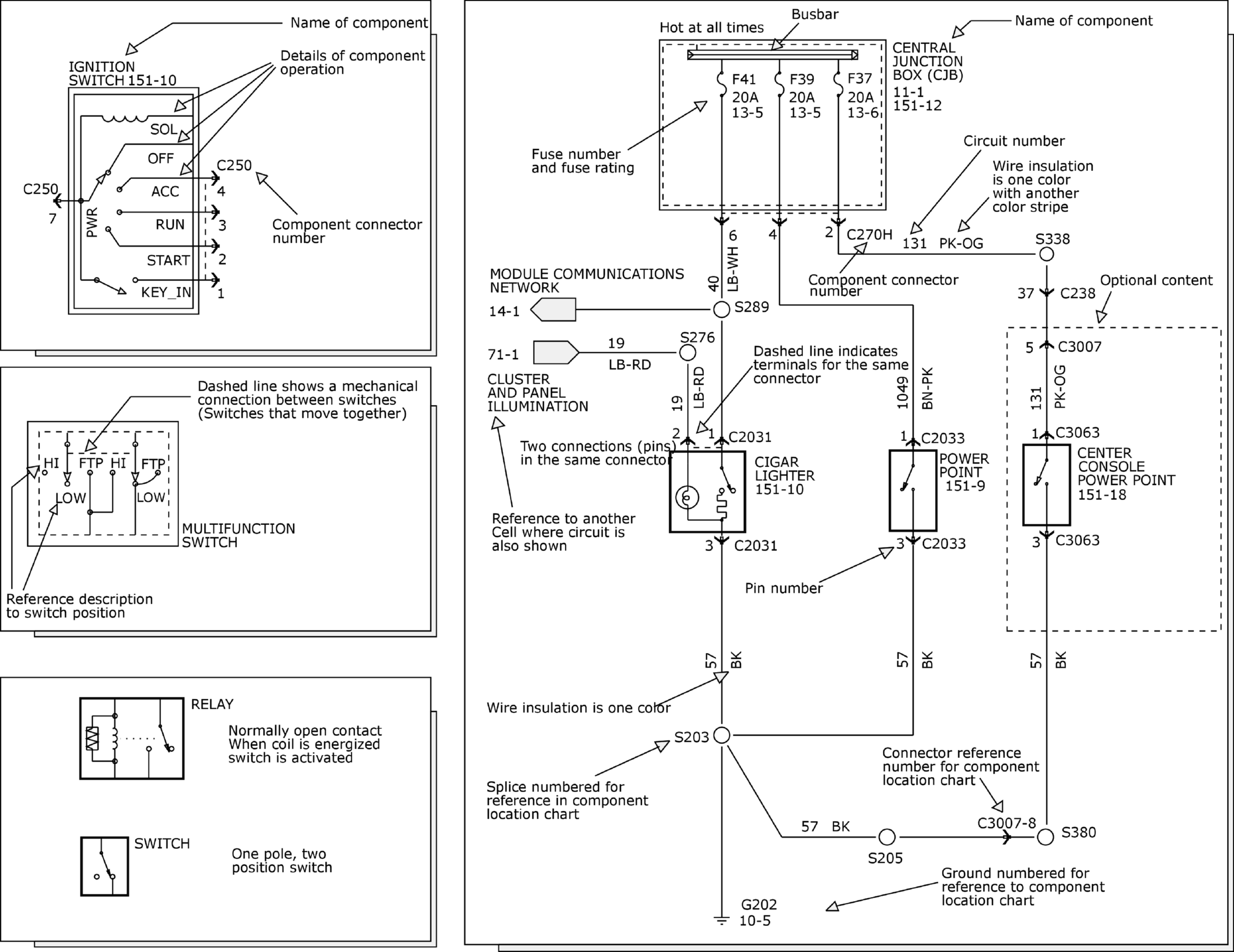

GFDW26252Courtesy of FORD MOTOR COMPANY

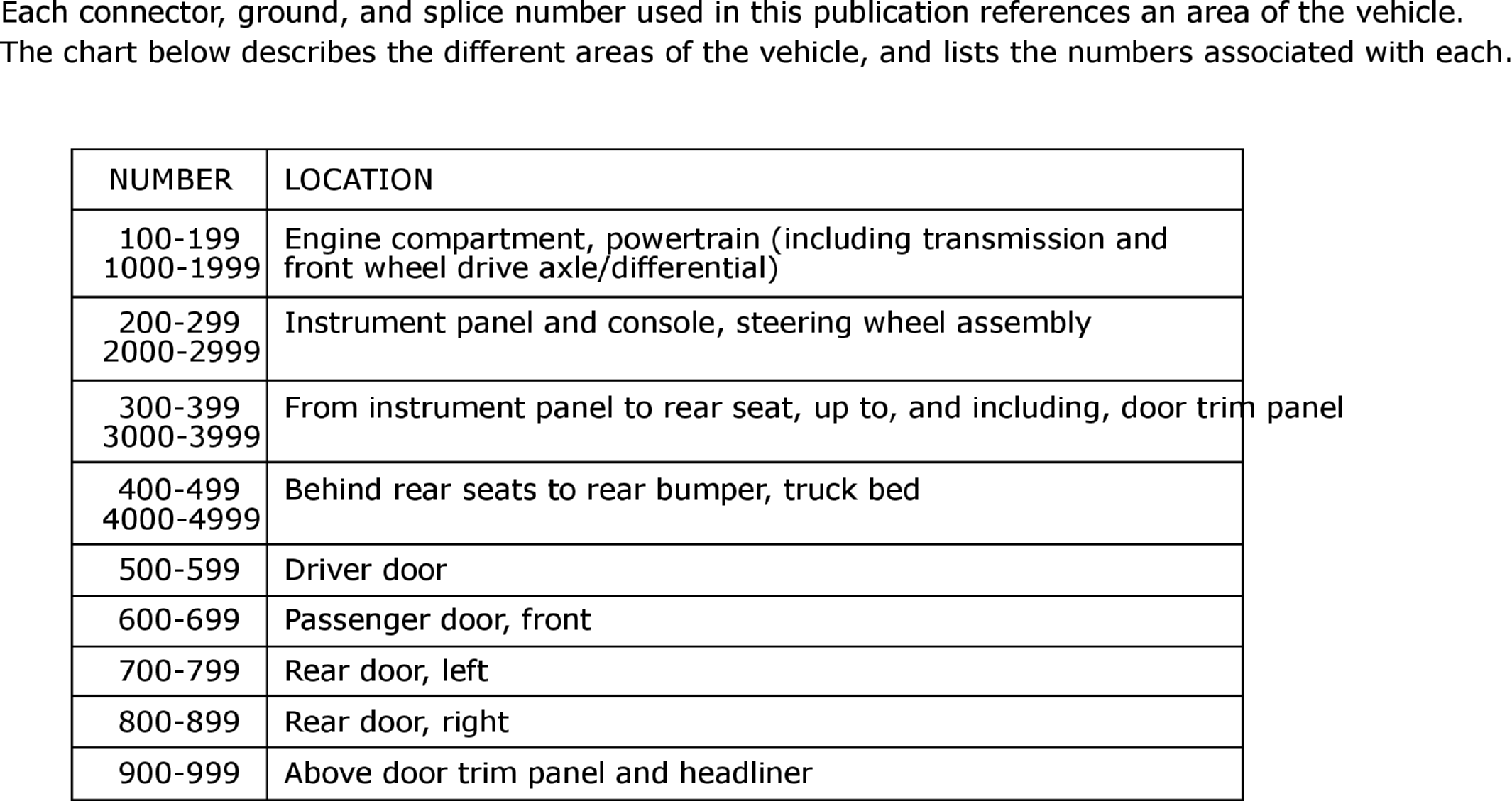

GFDW26253Courtesy of FORD MOTOR COMPANY
