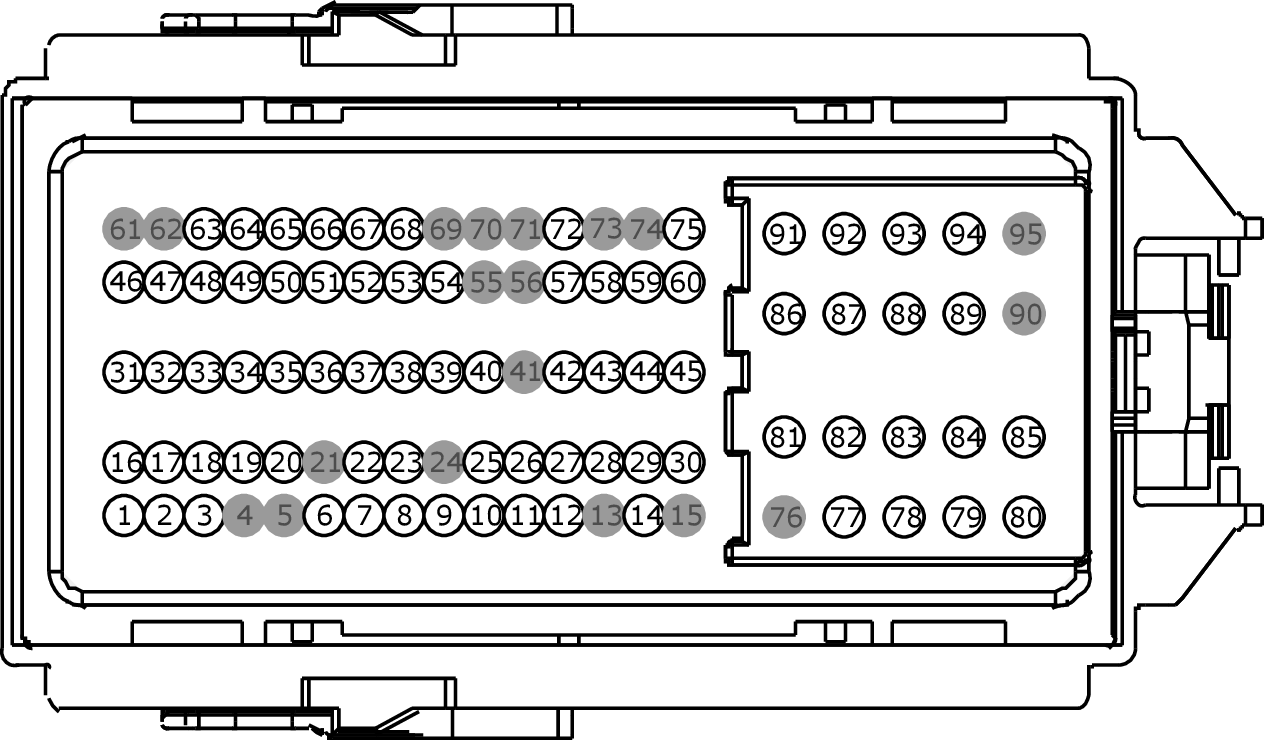

Connector End View (C1232E) - POWERTRAIN CONTROL MODULE (PCM)
Connector:C1232E
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CE421 (VT) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 1 (VCT11) |
A/T |
|
1 |
CE235 (GNBN) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 1 (VCT11) |
M/T |
|
2 |
CE167 (YE-OG) |
18 |
CTRL MOD. - POWERTRAIN # BYPASS SOLENOID VALVE |
M/T |
|
2 |
CET18 (GY-YE) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) |
A/T |
|
3 |
VE836 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # ENGINE TURBOCHARGER BYPASS VALVE (TCBY) |
A/T |
|
3 |
LE423 (GN) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) |
M/T |
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
5 |
LE134 (GN) |
18 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) |
M/T |
|
6 |
LE458 (BU-WH) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) |
A/T |
|
7 |
LE134 (YE) |
18 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) |
A/T |
|
7 |
LE458 (BU-WH) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) |
M/T |
|
8 |
LE423 (GN) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) |
A/T |
|
9 |
CMC24 (GY) |
18 |
SWITCH - OIL PRESSURE |
A/T |
|
10 |
VET32 (VT) |
20 |
SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] |
A/T |
|
10 |
RE454 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE |
M/T |
|
11 |
VE711 (YE-VT) |
20 |
SENSOR - CRANKSHAFT POSITION (CKP) |
A/T |
|
12 |
VET26 (BN-GN) |
20 |
SENSOR - OUTPUT SHAFT SPEED (OSS) |
A/T |
|
13 |
* |
* |
Not Used |
|
|
14 |
CE235 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) |
A/T |
|
15 |
* |
* |
Not Used |
|
|
16 |
CE460 (VT-WH) |
18 |
CTRL MOD. - POWERTRAIN # TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS) |
A/T |
|
16 |
CE421 (VT) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 1 (VCT11) |
M/T |
|
17 |
CE166 (GY-OG) |
18 |
CTRL MOD. - POWERTRAIN # DEGAS SOLENOID VALVE |
A/T |
|
18 |
CE167 (YE-OG) |
18 |
CTRL MOD. - POWERTRAIN # BYPASS SOLENOID VALVE |
A/T |
|
18 |
RE134 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL ETCRTN) |
M/T |
|
19 |
RE433 (BU-GY) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE SIGRTN) |
M/T |
|
19 |
* |
* |
Not Used |
|
|
20 |
RE454 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE |
A/T |
|
20 |
RE429 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) |
M/T |
|
21 |
* |
* |
Not Used |
|
|
22 |
LE111 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) |
A/T |
|
22 |
RE238 (BU-BN) |
20 |
CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR - |
M/T |
|
23 |
VE716 (YE) |
20 |
SENSOR - CHARGE AIR COOLER COOLANT TEMPERATURE (CACCT) UO2SGREF11) |
M/T |
|
24 |
* |
* |
Not Used |
|
|
25 |
LE448 (GY-BU) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST |
M/T |
|
26 |
VE826 (BN-VT) |
18 |
SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11) |
M/T |
|
27 |
VET33 (WH-OG) |
20 |
SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + |
A/T |
|
28 |
VE706 (BN-BU) |
20 |
SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP11) |
A/T |
|
29 |
CE422 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11) |
A/T |
|
30 |
CET08 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) |
A/T |
|
31 |
RE134 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) |
A/T |
|
31 |
CE422 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 1 (VCT11) |
M/T |
|
32 |
RET24 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) |
A/T |
|
33 |
VE803 (BU-GN) |
18 |
SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) |
A/T |
|
33 |
VE819 (GN-VT) |
18 |
SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2) |
M/T |
|
34 |
VE818 (BN) |
18 |
SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1) |
M/T |
|
35 |
VE803 (BU-GN) |
18 |
SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) |
M/T |
|
36 |
VE706 (BN-BU) |
20 |
SENSOR - CAMSHAFT POSITION BANK 1 IN +EX / IN (CMP11) |
M/T |
|
36 |
VE716 (YE) |
20 |
SENSOR - CHARGE AIR COOLER COOLANT TEMPERATURE (CACCT) |
A/T |
|
37 |
LE238 (GY) |
20 |
FUEL RAIL PRESSURE (FRP) |
A/T |
|
37 |
VE707 (GN-VT) |
20 |
SENSOR - CAMSHAFT POSITION BANK 2 IN +EX / IN (CMP12) |
M/T |
|
38 |
LE238 (GY) |
20 |
FUEL RAIL PRESSURE (FRP) |
M/T |
|
39 |
LE451 (BN-YE) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11) |
M/T |
|
40 |
LE452 (GN) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11) |
M/T |
|
41 |
* |
* |
Not Used |
|
|
42 |
CE303 (WH-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP1A) |
A/T |
|
42 |
CMC24 (GY) |
18 |
SWITCH - OIL PRESSURE |
M/T |
|
43 |
CE306 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4C) |
A/T |
|
44 |
CET10 (BU-GY) |
20 |
TORQUE CONVERTER CLUTCH (TCC) SOLENOID |
A/T |
|
45 |
CET06 (GN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) |
A/T |
|
46 |
CE166 (GY-OG) |
18 |
CTRL MOD. - POWERTRAIN # DEGAS SOLENOID VALVE |
M/T |
|
47 |
CE460 (VT-WH) |
18 |
CTRL MOD. - POWERTRAIN # TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS) |
M/T |
|
48 |
LE452 (GN) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11) |
A/T |
|
48 |
VE836 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # ENGINE TURBOCHARGER BYPASS VALVE (TCBY) |
M/T |
|
49 |
VE711 (YE-VT) |
20 |
SENSOR - CRANKSHAFT POSITION (CKP) |
M/T |
|
49 |
LE448 (GY-BU) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UO2SGREF11) |
A/T |
|
50 |
VE802 (BN-BU) |
20 |
SENSOR - KNOCK 2ND (KS2+) |
A/T |
|
50 |
CE303 (WH-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP1A) |
M/T |
|
51 |
CE304 (YE-BU) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2D) |
M/T |
|
51 |
RE324 (BN-GN) |
20 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KS2-) |
A/T |
|
52 |
VE819 (GN-VT) |
18 |
SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2) |
A/T |
|
52 |
CE305 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3B) |
M/T |
|
53 |
CE306 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4C) |
M/T |
|
53 |
RE405 (GN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) |
A/T |
|
54 |
VE707 (GN-VT) |
20 |
SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP12) |
A/T |
|
55 |
* |
* |
Not Used |
|
|
56 |
* |
* |
Not Used |
|
|
57 |
CE304 (YE-BU) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2D) |
A/T |
|
57 |
VE802 (BN-BU) |
20 |
NSOR - KNOCK 2ND (KS2+) |
M/T |
|
58 |
RE324 (BN-GN) |
20 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KS2-) |
M/T |
|
59 |
CET09 (YE-VT) |
20 |
LINE PRESSURE CONTROL (LPC) |
A/T |
|
59 |
VE801 (VT-OG) |
20 |
SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+) |
M/T |
|
60 |
RE323 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-) |
M/T |
|
60 |
CET05 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) |
A/T |
|
61 |
* |
* |
Not Used |
|
|
62 |
* |
* |
Not Used |
|
|
63 |
LE451 (BN-YE) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11) |
A/T |
|
64 |
VE826 (BN-VT) |
18 |
SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11) |
A/T |
|
65 |
VE801 (VT-OG) |
20 |
SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+) |
A/T |
|
66 |
RE323 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-) |
A/T |
|
67 |
VET27 (BN-YE) |
20 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
A/T |
|
68 |
VE818 (BN) |
18 |
SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1) |
A/T |
|
69 |
* |
* |
Not Used |
|
|
70 |
* |
* |
Not Used |
|
|
71 |
* |
* |
Not Used |
|
|
72 |
CE305 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3B) |
A/T |
|
73 |
* |
* |
Not Used |
|
|
74 |
* |
* |
Not Used |
|
|
75 |
CET07 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) |
A/T |
|
76 |
* |
* |
Not Used |
|
|
77 |
RE226 (GN-VT) |
16 |
FUEL VOLUMN REGULATOR RETURN (FVRRTN) |
A/T |
|
78 |
CE226 (YE-VT) |
16 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
A/T |
|
78 |
RE226 (GN-VT) |
16 |
FUEL VOLUMN REGULATOR RETURN (FVRRTN |
M/T |
|
79 |
CE226 (YE-VT) |
16 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
M/T |
|
79 |
VYT11 (VT-GY) |
18 |
CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT) |
A/T |
|
80 |
CET49 (BN) |
18 |
CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) |
A/T |
|
81 |
VYT12 (YE-GN) |
18 |
PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI) |
A/T |
|
81 |
RE206 (BU-OG) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - |
M/T |
|
82 |
RE207 (GN-VT) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - |
M/T |
|
82 |
CE207 (VT-GY) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) |
A/T |
|
83 |
CE206 (GY-YE) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) |
A/T |
|
83 |
RE208 (BU) |
14 |
MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - |
M/T |
|
84 |
RE205 (YE-BU) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - |
M/T |
|
84 |
CE205 (GN-BU) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) |
A/T |
|
85 |
CE208 (YE-OG) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) |
A/T |
|
86 |
CE412 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) |
A/T |
|
86 |
CE208 (YE-OG) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) |
M/T |
|
87 |
CE206 (GY-YE) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) |
M/T |
|
87 |
RE205 (YE-BU) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - |
A/T |
|
88 |
RE206 (BU-OG) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - |
A/T |
|
89 |
CE426 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) |
M/T |
|
90 |
* |
* |
Not Used |
|
|
91 |
CE426 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) |
A/T |
|
91 |
CE205 (GN-BU) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) |
M/T |
|
92 |
CE207 (VT-GY) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) |
M/T |
|
92 |
RE208 (BU) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - |
A/T |
|
93 |
RE207 (GN-VT) |
14 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - |
A/T |
|
94 |
CE412 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) |
M/T |
|
95 |
* |
* |
Not Used |
