Connector End View (C919) - INLINE
InlineC919
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

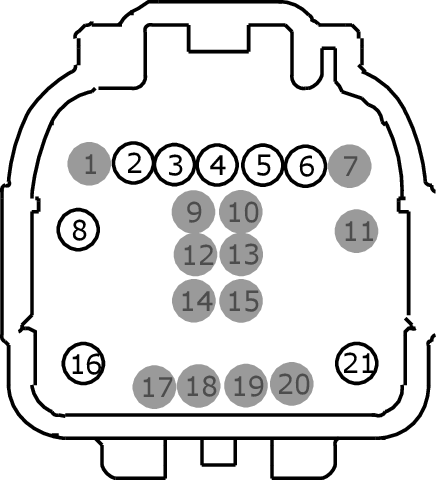

MALE
Harness 14A005

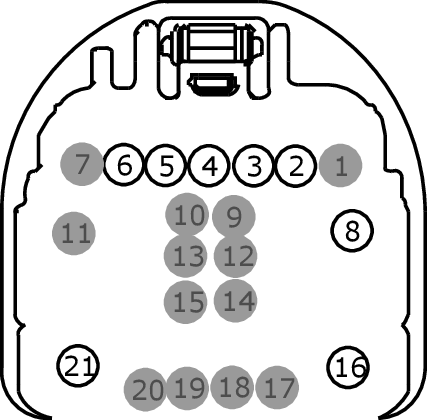

FEMALE
Harness 15C670
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
* |
* |
|
|
2 |
CPR40 (YE) |
26 |
14A005 |
|
2 |
CPR40 (YE-OG) |
22 |
|
|
3 |
CPW01 (BN-BU) |
22 |
|
|
4 |
CPR38 (BU) |
26 |
14A005 |
|
4 |
CPR38 (WH-BU) |
22 |
|
|
5 |
CPR31 (BN) |
26 |
14A005 |
|
5 |
CPR31 (VT-BN) |
22 |
|
|
5 |
CPR31 (VT-WH) |
26 |
14A005 |
|
6 |
VMC05 (OG) |
26 |
14A005 |
|
6 |
VMC05 (VT-OG) |
22 |
14A005 |
|
6 |
VMC05 (VT-OG) |
22 |
|
|
7 |
* |
* |
|
|
8 |
CBP23 (BN-YE) |
20 |
14A005 |
|
8 |
CBP23 (BN-YE) |
20 |
14A005 |
|
8 |
CBP23 (BN-YE) |
22 |
|
|
9 |
* |
* |
|
|
10 |
* |
* |
|
|
11 |
* |
* |
|
|
12 |
* |
* |
|
|
13 |
* |
* |
|
|
14 |
* |
* |
|
|
15 |
* |
* |
|
|
16 |
SBP27 (BU-RD) |
10 |
|
|
16 |
SBP27 (BU-RD) |
12 |
14A005 |
|
17 |
* |
* |
|
|
18 |
* |
* |
|
|
19 |
* |
* |
|
|
20 |
* |
* |
|
|
21 |
GD382 (BK-GY) |
10 |
|
|
21 |
GD383 (BK-WH) |
10 |
14A005 |
|
21 |
GD383 (BK-WH) |
12 |
14A005 |
|
21 |
GD383 (BK-WH) |
12 |
14A005 |
