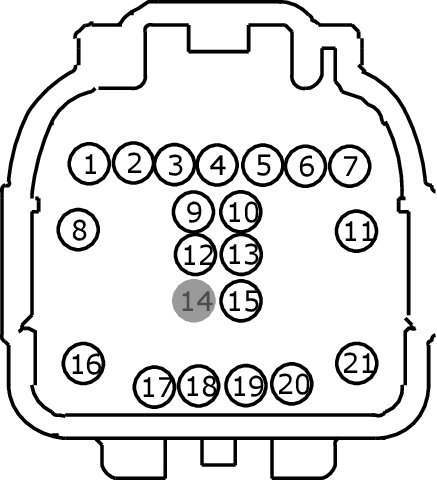

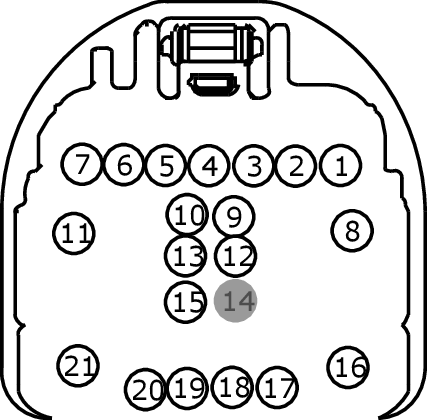

Connector End View (C900) - INLINE
InlineC900
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14A005
FEMALE
Harness 17C712
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
VLN04 (VT-GY) |
22 |
|
|
2 |
CBB23 (BN-YE) |
20 |
14A005 |
|
2 |
VMEA0 (BU) |
26 |
17C712 |
|
2 |
VMEA0 (BU-GN) |
22 |
14A005 |
|
3 |
RMEA0 (WH) |
26 |
17C712 |
|
3 |
RMEA0 (WH-OG) |
22 |
14A005 |
|
4 |
VME57 (VT) |
26 |
17C712 |
|
4 |
VME57 (YE-VT) |
22 |
14A005 |
|
5 |
RME57 (BU) |
26 |
17C712 |
|
5 |
RME57 (BU-BN) |
22 |
14A005 |
|
6 |
VDN05 (YE-GY) |
22 |
|
|
6 |
VMEA0 (BU) |
26 |
17C712 |
|
7 |
CRW13 (GN) |
18 |
14A005 |
|
7 |
CRW13 (GN) |
20 |
17C712 |
|
7 |
RMEA0 (WH) |
26 |
17C712 |
|
8 |
CBP36 (BU-BN) |
14 |
14A005 |
|
8 |
CBP36 (BU-BN) |
20 |
14A005 |
|
8 |
CBP36 (YE-GY) |
20 |
17C712 |
|
8 |
VLN33 (GY-VT) |
22 |
|
|
9 |
LRD12 (BU) |
26 |
17C712 |
|
9 |
LRD12 (BU-GY) |
20 |
14A005 |
|
9 |
LRD12 (BU-GY) |
22 |
17C712 |
|
10 |
VDN05 (YE) |
22 |
17C712 |
|
10 |
VDN05 (YE-GY) |
22 |
14A005 |
|
11 |
CBP36 (BU-BN) |
20 |
14A005 |
|
11 |
CBP36 (YE-GY) |
20 |
17C712 |
|
11 |
GD383 (BK-WH) |
16 |
14A005 |
|
11 |
GD383 (BK-WH) |
20 |
17C712 |
|
12 |
VDB25 (GN) |
22 |
17C712 |
|
12 |
VDB25 (GN) |
26 |
17C712 |
|
12 |
VDB25 (GN-WH) |
26 |
14A005 |
|
12 |
VDB25 (OG) |
26 |
14A005 |
|
13 |
VDB26 (BU) |
26 |
14A005 |
|
13 |
VDB26 (GY) |
22 |
17C712 |
|
13 |
VDB26 (GY) |
26 |
|
|
14 |
* |
* |
14A005 |
|
14 |
VME99 (VT) |
26 |
17C712 |
|
15 |
RME99 (YE) |
26 |
17C712 |
|
15 |
RRD12 (BN) |
20 |
14A005 |
|
15 |
RRD12 (BN) |
22 |
17C712 |
|
15 |
RRD12 (BN) |
26 |
17C712 |
|
16 |
CLN09 (YE-GN) |
22 |
|
|
16 |
CRW13 (GN) |
20 |
|
|
17 |
VDB25 (GN) |
22 |
17C712 |
|
17 |
VDB25 (GN) |
26 |
17C712 |
|
17 |
VDB25 (GN-WH) |
26 |
14A005 |
|
17 |
VDB25 (OG) |
26 |
14A005 |
|
17 |
VMM23 (BN) |
26 |
14A005 |
|
17 |
VMM23 (BN-VT) |
22 |
17C712 |
|
18 |
RMM23 (WH) |
26 |
14A005 |
|
18 |
RMM23 (WH-GN) |
22 |
17C712 |
|
18 |
VDB26 (BU) |
26 |
14A005 |
|
18 |
VDB26 (GY) |
22 |
17C712 |
|
18 |
VDB26 (GY) |
26 |
|
|
19 |
CLS28 (BU-WH) |
20 |
14A005 |
|
19 |
CLS28 (BU-WH) |
22 |
17C712 |
|
19 |
LRD12 (BU) |
22 |
17C712 |
|
19 |
LRD12 (BU) |
26 |
17C712 |
|
19 |
LRD12 (BU-GY) |
22 |
14A005 |
|
20 |
GD382 (BK-GY) |
18 |
14A005 |
|
20 |
RRD12 (BN) |
22 |
|
|
20 |
RRD12 (BN) |
26 |
17C712 |
|
21 |
CLS28 (BU-WH) |
22 |
|
|
21 |
GD383 (BK-WH) |
16 |
14A005 |
|
21 |
GD383 (BK-WH) |
22 |
17C712 |
