Connector End View (C341C) - DRIVER SEAT MODULE (DSM)
Connector:C341C
Description
DRIVER SEAT MODULE (DSM)
Color
Harness
14D231
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
RPP07 (YE-GN) |
20 |
CTRL MOD. - SENSOR ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD) - |
|
|
5 |
CPP18 (BN-VT) |
20 |
CTRL MOD. - SOLENOID RAKE (TILT) |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
CPP04 (GY-OG) |
18 |
CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP |
|
|
11 |
CPP22 (GY-BN) |
18 |
CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
RPP06 (GN) |
20 |
CTRL MOD. - SENSOR ADJUSTABLE PEDAL - |
|
|
16 |
* |
* |
Not Used |
|
|
17 |
* |
* |
Not Used |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
* |
* |
Not Used |
|
|
21 |
* |
* |
Not Used |
|
|
22 |
CPP23 (VT-GN) |
18 |
CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN |
|
|
23 |
CPP03 (GN-VT) |
18 |
CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD |
|
|
24 |
* |
* |
Not Used |
|

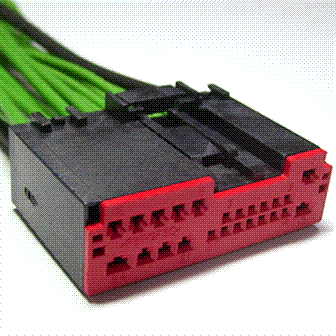

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1126 |
Service Part Number: AU2Z-14S411-ATA Gauge: 12 16 18 Pin material: Tin & Silver Cavities: 24 Vehicle Uses Module - Driver Door Module - Seat Memory Module - Tire Pressure |
